3 Axles Spring Suspension Chemical Tanker Truck For 33CBM Sodium Hypochlorite NaOCl

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	OEM
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

3 Axles Spring Suspension Chemical Tanker Truck For 33CBM Sodium Hypochlorite NaOCl

Sodium Hypochlorite 12.5% Tanks Semi Trailer 3 Axles Spring Suspension For 33CBM Sodium Hypochlorite (NaOCl)

Hypochlorous Acid Tank

Sodium Sait Tank

Bleach Tank

Customization, Cost Control Built How You Want it, Price You Can Afford.for sale call:+86152 71357675

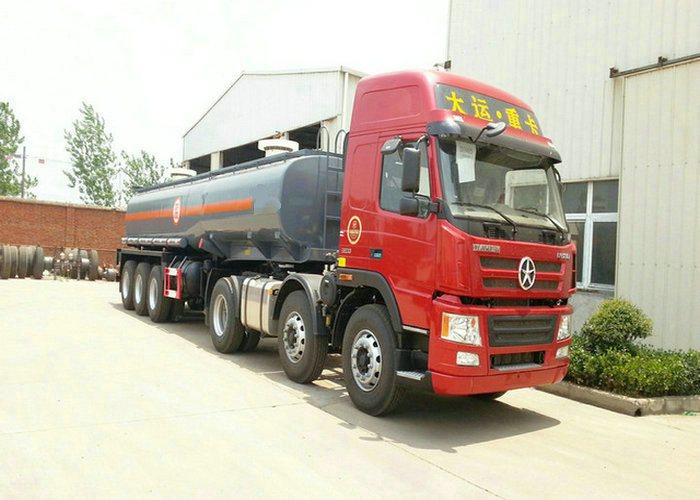

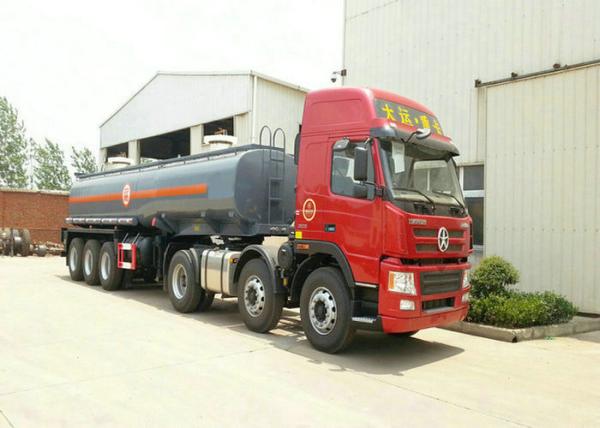

Tank Photo show:

Vehicle	Vehicle model	DRZ9402GFWB
	Overall dimension	1100025003900 MM
	Curb weight	11000 KG
	Loading capacity	33 -45 cbm
	Front/rear hanging	-/1450
	Leaf spring	-/8/8/8
Chassis	Chassis model	3 axles
	Manufacturer	DRZ
	Wheelbase	5600+1310+1310mm
	Tire Specification	11.00R20
	King pin	50# or 90 #
	ABS	Equipped
	Nos of tire	12+1 Pcs
Tanker	Brand	DRZE
	Manufacturer	DRZ
	Volume	30cbm
	Transport medium	Sodium Hypochlorite 12.5% Tanks Semi Trailer 3 Axles Spring Suspension For 33CBM Sodium hypochlorite (NaOCl)
	Material	According to your order
Remark	We can do it according to your order.

29000 - 30000 liters 3 axles acid transportation tanker trailer with plastic lining

30000 liters 3 axles acid transportation tanker trailer with plastic lining
Overall Dimension		10850x2500x3870
Tanker Volume		30cbm
Tare Weight		9700kg
Payload		30300kg
Number of axles		3
Suspension (Front / Rear)		-/1460
Wheel base(mm)		5100+1310+1310
Appr/Dep Angle(°)		-/21
Track width (Rear)		1840/1840/1840mm
Leaf spring No's		--9/9/9 90mm (Width) 15mm(Thickness)
Mudguard		Heavy duty type, with a large mudguard at each side
Welding		Long member beams welded by Co2 Arc, other parts weled with MAG process
Tank Body
Tank shell material		carbon steel (6mm) + inner lining
End plate		carbon steel (6mm) + inner lining
Anti-Wave Board		Rounded shape Thickness:6mm equally devided the tanker into 6 parts (with manhole and flow channel)
Partition Plate		Not applicable
Discharge Valve		2 sets, 3” ball-type valve at rear of tank (The size can be designed as per request)
Bottom valve		1 set, at rear of tank Stainless steel
Ball valve		Air controlled plastic ball valve
Manhole cover		2 sets
Running Gear
Suspension	Tri-axle 9pcs leaf spring suspension with equalizer beam, (Air suspension)
Axles	FUWA axle, 13T capacity (BPW,YORK,SAF optional)
Tires	AEOLUS 12.00R22.5, 12units or Triangle
Rim	9.00-22.5
Brakes	Dual lines pneumatic brake system, with ABS
	Relay Valve; T30/30+T30 air chamber;
Under Frame
Main Beam	Q345B steel, H shape, height 500mm, thickness Up14mm, Lower 16mm, & Middle 8mm
Cross Beam	Q235 channel stee
King Pin	Size: 50# (2') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or both side operation,
	Static capacity 28Ton
Appendix	1 tool box, length 1.0m
Electrical & Painting
Electrical system			1 voltage 24V , 7 lines (7 wire harness)
Sign lights			Brake light, rear reflector, turn indicative light, side reflector, fog lamp etc
Air/Elec. Connector			24V 7 pin plug socket
Finishing & Painting			Sand blasting to clean rust, anti-corrosion for inner tank and top, 2 coats of paints (primer paint + finishing coat). Color upon buyer special request.

Shipment option

CBU terms should be chosen for such tanker shipme

DRZ tank is specially design for the transportation hazardous cargoes Sulphuric .
The discharging is normally by gravity. Pumps can be used as an option. Other facilities provided included manholes, lipsticks, discharging valves, ladders. The tanker body will be painted with logo or any banners that the customer assigns.

Basic Chemicals Tanks for reactor/ storage or transport
Caustic Soda (NaOH) Tanks
Sulphuric Acid (H2SO4) Tanks
Hydrochloric Acid (HCl) Tanks
Phosphoric Acid (H3PO4) Tanks
Liquid Ammonia (NH3) Tanks
Javel (NaOCl) Sodium hypochlorite Tanks Ect.
