JAC Road Wash Water Carrier Truck 5000L With Water Pump Sprinkler For Clean Water Delivery and Spray

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

JAC Road Wash Water Carrier Truck 5000L With Water Pump Sprinkler For Clean Water Delivery and Spray

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	JAC
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

JAC Road Wash Water Carrier Truck 5000L With Water Pump Sprinkler For Clean Water Delivery and Spray

JAC Road Wash Water Carrier Truck 5000L With Water Pump Sprinkler For Clean Water Delivery and Spray
JAC 4x2 5M3 stainless steel water tank fire fighting truck
6000Litres Water Tank Truck , 4x2 /4X4, water bowser truck

1. High Quality Chassis, 4X2 Drive, LHD/RHD
2.Self suction, self discharge function, front flushes sprinkles, side spurts, post positioned work table.
3. High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape.
4. Optional fire pump and fire-fighting accessories.

Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking

4x2 /5000L water tank cleaning truck

Vehicle Model	DRZ5041GSSH	DRZ
Overall dimensions	5880X1980X2200mm	Curb weight	2950kg
Tank dimensions	3500×1720×1150mm	Tank volume	5000L

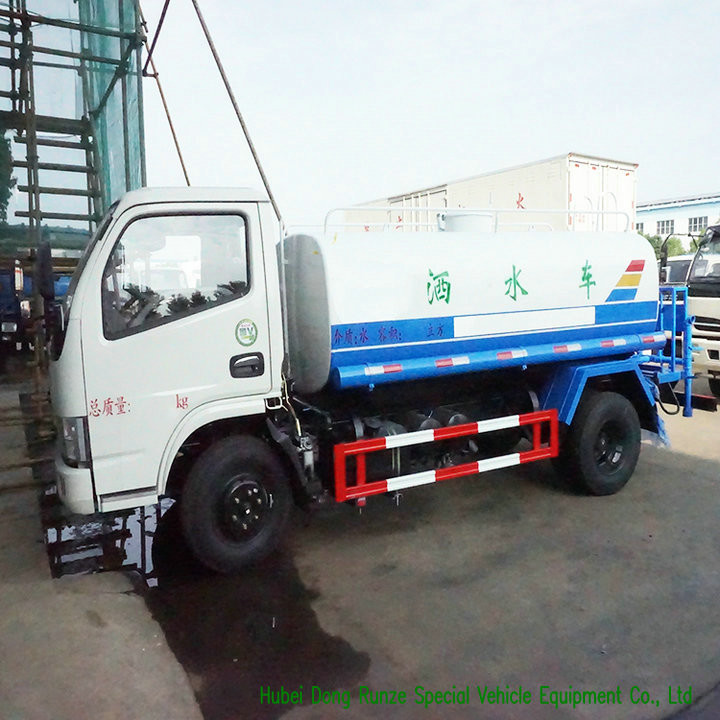

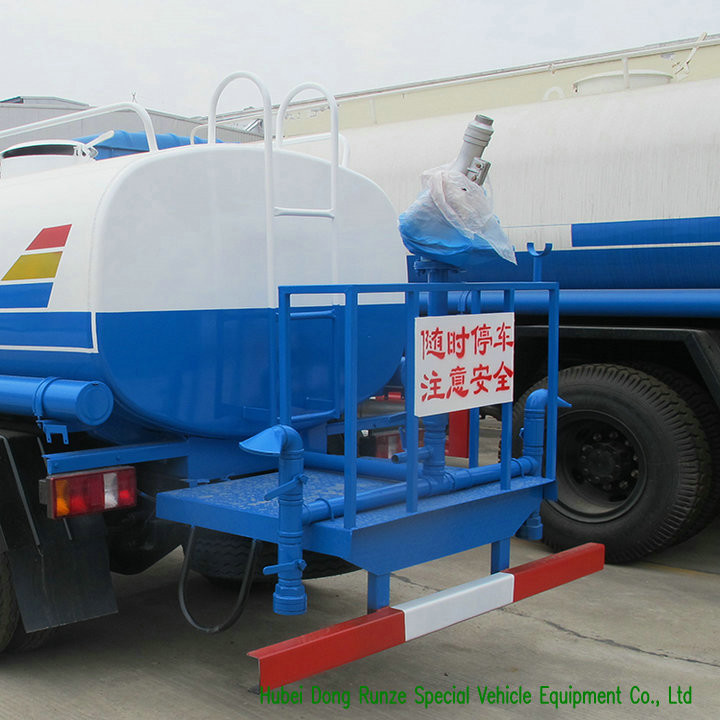

Truck Photo show:

Chassis parameters
Chassis model		DRZ1041P93K5C2	Chassis brand	JAC
Overall dimensions		5793x1796x2140mm	Wheel base	3308mm
Front/rear wheel track		1420/1440mm	Front/rear suspension	1105/1380mm
Approach/departure angle		20/15°	Maximum speed	90km/h
Chassis Manufacturer		Anhui Jianghuai Automobile Co., Ltd
Cab	Configuration	Single row cab, air conditioning, ABS
	Color	Red, other color is optional
Engine	Model	YN27CRD1
	Emission	Euro 4
	Type	Electronically controlled high pressure common rail diesel engine, 4 cylinder inline, Turbocharged medium cooling
	Rated power	95hp, rated power speed 3200rpm
	Displacement	2672ml
	Max.torque	250N.m
	Bore x stroke	90X105mm
	Manufacturer	Kunming Yunnei Limited by Share Ltd
Tire	Size	650-16 Nylon tire
	Number	6+1 nos
Fuel tank	150L iron oil tank
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions		3500×1720×1150mm	Tank volume	5000L
Tank material		Carbon steel	Tank thickness	4/5mm
Nozzle sprinkling width		≥14m	Range of water cannon	≥28m
Suction height		≥7m	Color and Logo	Optional
Standard configuration	Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration	Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model	water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.

Water Transport Sprinkling Truck

FAQ

·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish

Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
