JAC 4X2 Water Transport Tank Truck For Water Carrier With HONDA Water Pump 10m3

Water Bowser JAC with HONDA gasoline engine (10,000 litres)
General	Vehicle Brand	DRZ
	Chassis Brand	JAC
	Overall Dimension	8250 x 2495 x 3000 mm
	GVW / Kerb Weight	15,950 kg / 7,455 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	FAW engine
	Power	180 Hp (143 KW)
	Displacement	6740 ml
	Emission Standard	Euro II
Chassis	Drive Type	4X2, left hand drive
	Transmission	6-speed front, 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tyre Specification	10.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	10,000 Litres ( About 2,600 gallons)
	Tank Material	Carbon steel
	Pump	HONDA separate gasoline pump
	Lift	21 m
	Suction Head	6 m
	Hose	High quality PVC hose, anti-aging
	All other standard accessories: manhole, ladder, inlet, discharge…….
Optional	Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

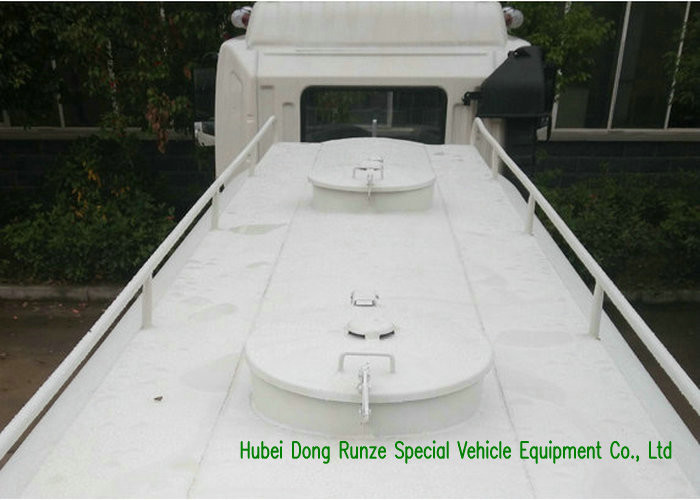

Truck Photo show:

JAC 4X2 transport water tank truck for sale water carrier truck Euro 3 emission manual transmission truck water heater

Item		unit	parameter
Overall dimensions		mm	9250X2380X2960
	Fact cubage	L	10000
	GVW	kg	18000
	Rated loading weight	kg	10000
	Curb weight	kg	7500
	Body internal dimensions	mm	5000*1960*1330
	Wheel base		4500
	F/R track base		1900,1800
	Approach/departure angle	°	17/12
Exhaust/kw		ml/kw	7120/132
Max speed		km/h	92
Tire specification		9.00R20
Traction system		4X2	transmission	manual transmssion, 6-speed
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	3
Engine		FAW Jiefang
Production cycle		10-15 days
Warranty		12 month,from the date of supply
