18000L 6x6 / 6x4 Offroad Liquid Tank Truck For Petroleum Oil / Gasoline / Petrol Transport

Beiben 18000L 6x6 / 6x4 Offroad Diesel Tanker For Petroleum Oil /Gasoline/ Petrol/ Diesel Transportation With PTO Pump

Driving Type: 6*4 6*6 , AWD, off-road , 10 wheel ,

Capacity: 12000L, 15000L, 18000L, 20000L..

Steering Wheel: Left Hand Drive and Right Hand Drive

North-ben BeiBen 6x4 / 6x6 Off-road Fuel Oil Tanker Truck
General
	Chassis Brand	North Benz
	Overall Dimension	9580 * 2500 * 3400 mm
	GVW / Kerb Weight	25,000 kg / 12,400 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Air conditioner is equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine(Chinese top brand)
	Power	336 Ps (247 KW)
	Displacement	9726 ml
	Emission Standard	Euro III
Chassis	Drive Type	6X6, left hand drive
	Transmission	9-speed front, 1 reverse
	Wheelbase/No. of axle	4450+1450 mm / 3
	Tyre Specification	12.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	85 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	18,000 Litres ( About 4,700 gallons )
	Tank Material	Carbon steel
	Pump	Equipped for overhead delivery, 1000 litres / min
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional	Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… It can be divided into many compartments. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… Heat preservation & heating system could be added. ** Bottom loading system can be equipped.

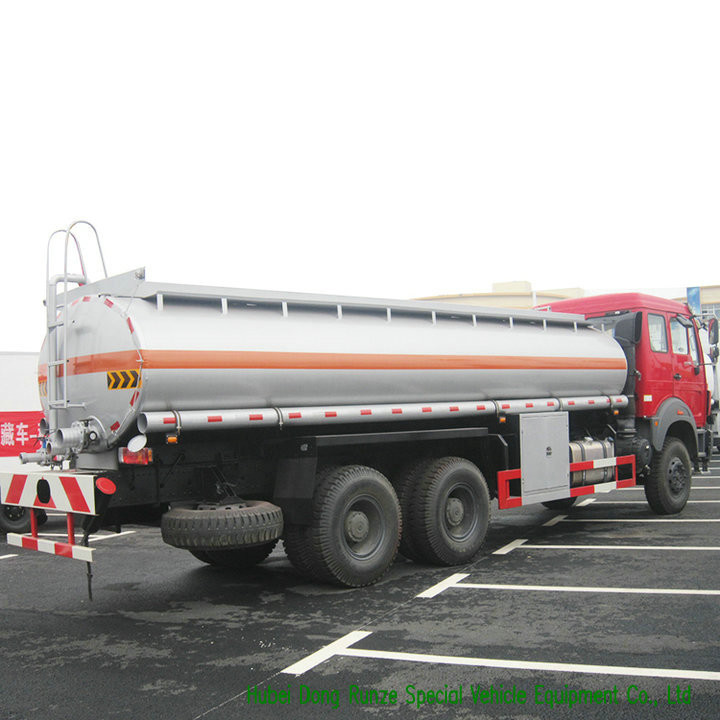

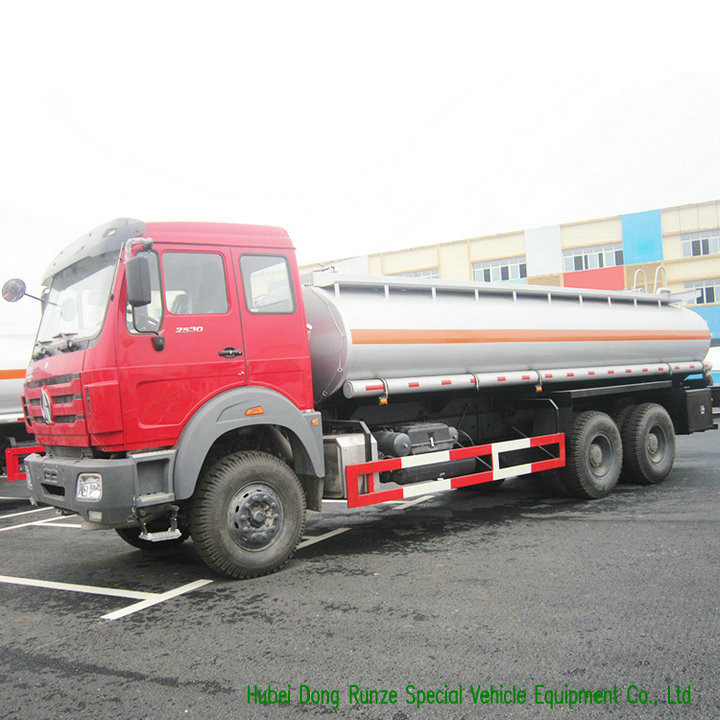

Truck Photo show:

Truck Specification
Chassis model			North Benz
Cab			North Benz single row cab, with power steering. Electronic flameout,without a/c
Driving Type			6*4 Left hand driving
Max Speed (km/h)			90
Overall dimension(mm)			947525003305
GVW( kg)			25000
Mass in working order ( kg)			12000
Tank Capacity (L)			18000
Wheelbase(mm)			4450+1450
F/R track base (mm)			1995/1800
F/R overhang (mm)			1480/2085
Approach/Departure Angel			16/17
Tire			11.00-20 (10+1)
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			9-speed
Bridge	Front axle		7.0T
	Rear axle		18.0T
Enging	Model		WP10
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)		8709
	Max output power/rotate speed (hp /rpm )		300
	Max torque/rotate speed(N.m/rpm)		9726L
Braking system	Service Brake		Compressed air brake
	Park Brake		Spring energy
	Auxiliary brake		engine exhaust brake
Eletric system			24v
Upper-Body specification
Volume of tank		21m3
Tank shape		oval
Material of tanker		carbon steel
Color of the tanker		According your demands
Equipment		Oil pump
Transport medium		Diesel oil, gasoil or others

> Main accessories for your Option:
Flow meter /gallon meter,oil pump,reel hose,independent compartments,aluminum alloy manhole,
stainless steel manhole,European standard aluminum alloy pneumatic bottom valve,API connectors,
Pneumatic swift combination,anti-flow system,vapor recovery system,liquid level detector.

Beiben 6x4 10 Wheels 20000L Petrol Tanker Diesel Fuel Storage Tank Oil Transport Tanker Truck

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish

Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
