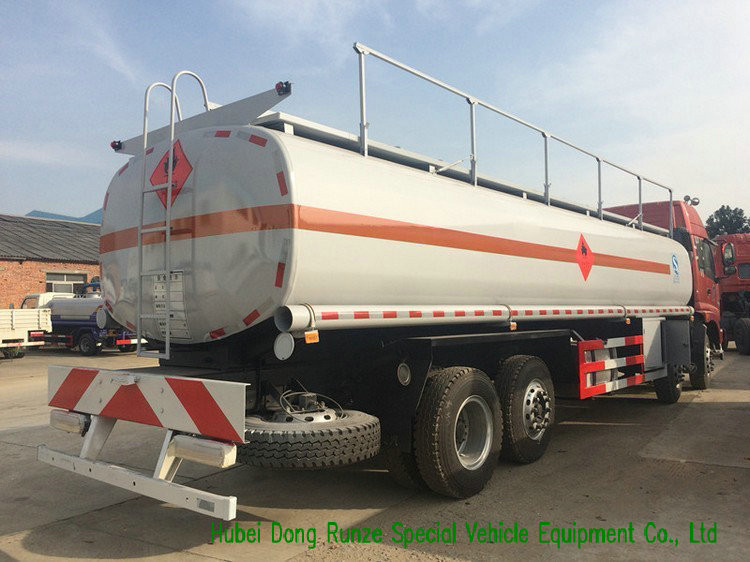

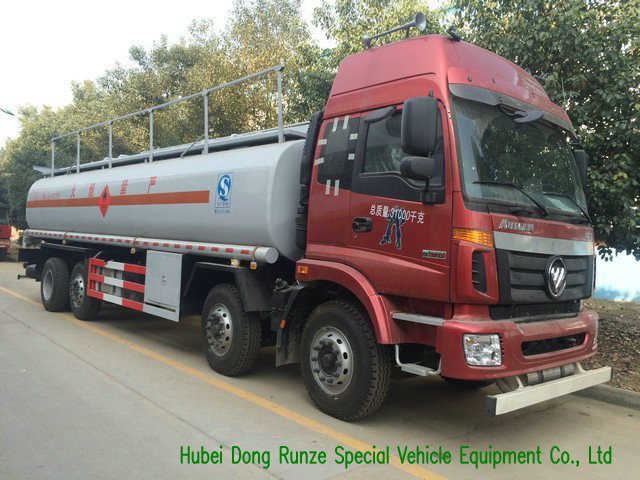

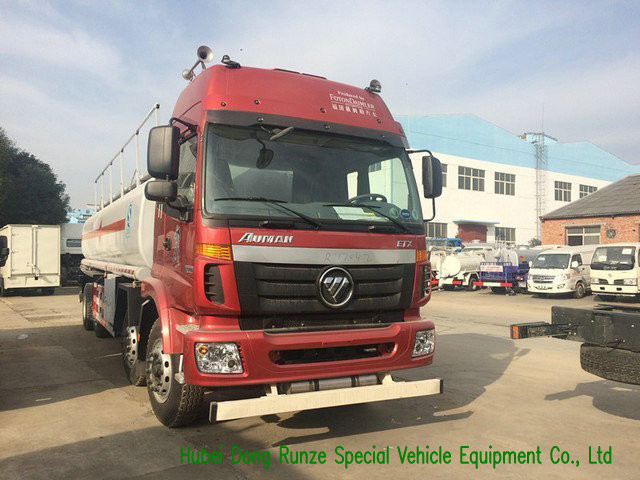

FOTON Aluminium Alloy 32000L Diesel Tanker Truck For Petroleum Oil
/Gasoline/ Petrol/ Diesel Express Delivery
Media for carrying:gasoline,diesel,heavy oil,alcohol,edible oil,etc.
Tank material:carbon steel,stainless steel,aluminum alloy,pure
aluminum,rubber-lined
Tank shape:round square,oval,round
Pump:self-priming pump,gear pump,chemical pump,stainless steel pump
Oil meter:single count,double count,tax control dispenser
Compartment:maybe divided into different spaces for carrying different oil
products.
Safety:technology of accident prevention and emeregency protection.
Environmental protection:provide totally-enclosed loading and unloading as well as remote
intelligent control technology.
High efficiency:maximum loading capacity and lightweight technology
Standard:synchronize with European and American technology and modular
design
Product features
1. Applied carbon steel sheet Q235-A;stainless steel;aluminium
alloy that in accordance with the international standard. Thickness
is 5-10mm.
2. Tank shape,such as round,round square,elliptic
3. Apply the famous pump,such as self-priming pump,gear
pump,chemical pump,stainless steel pump
4.The main parts implements automatic welding, while the
accessories apply carbon dioxide welding to ensure the tank in good
performance.
5. Sub crossbeam apply rectangle steel sheet that thickness more
than 5mm, stick out in one time.
6. Fire extinguisher replaced on the back of the truck for the
emergency.
7. Painting using sand blasting to clean rust to hold more
tolerance and coherence, can make sure the tank in good situation
more than 5 years.
8. According to customer’s requirements:
> The pump can be designed to pump in and out throw meter, or
not through meter, self-flow through or not through meter.
> The tank can be designed as a single compartment or several
compartments.
> You can choose to install heating pipes, insulation layer. The
Insulation material is generally 50-100 mm thickness, insulation
can be used rockwool, glasswool, polyurethane foam, aluminum
silicate. The cladding can be used 1.8-2mm thick white (RAL9003)
glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless
steel sub-mirror or matter board.
> At the end or side of tank, it can be installed 1-3 self-flow
valve.
> You can chosse the type of the inlet and outlet (European
standard or normal standard).
>Main accessories for your Option:
Flow meter /gallon meter,oil pump,reel hose,independent
compartments,aluminum alloy manhole,
stainless steel manhole,European standard aluminum alloy pneumatic
bottom valve,API connectors,
Pneumatic swift combination,anti-flow system,vapor recovery
system,liquid level detector
| Product Name | Foton Auman Aluminium Alloy 8x4 fuel truck |
| Tank Volume | 35000Litres |
| Tank Size | 9200*2500*1800mm (length*long axis*minor axis) |
| Main parameters | Overall size(L*W*H) | 11980×2500×3440mm |
| Gross weight | 31000kgs |
| Rated capacity | 19950,20015kgs |
| Curb weight | 10855kgs |
| Approaching/Departure Angle | 13/11(°) |
| Front/Rear suspension | 1532/2598,1532/2623mm |
| Axle loading | 6056/6944/18000 |
| Max.speed | 79km/h |
| Chassis | Chassis Brand | FOTON |
| Chassis model | BJ5317GYY-XB |
| Drive type | 8X4 |
| Fuel Type | Diesel |
| Tire Specification | 11.00R20,11.00-20
10.00-20,10.00R20 |
| Tire No. | 12 |
| Wheelbase | 1800+4700+1350mm
1800+4725+1300mm
1860+4725+1300mm
1860+4700+1350mm |
| Alex No. | 4 |
| Leaf Spring No. | 13/14/12 |
| Front trend | 2010/2010,1940/1940mm |
| Rear trend | 1847/1847,1860/1860mm |
| Engine | Manufacturer | Dongfeng Engine |
| Model | ISLe315 40 |
| Horse Power | 315HP |
| Displacement/Power | 8900ml/231.5kw |
| Emission standard | Euro 4 |
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value
payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value
payoff before delivery after production finish
