Vacuum Jetting Truck With High Pressure Jetting Pump and Vacuum Pump 5500Liters

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

Vacuum Jetting Truck With High Pressure Jetting Pump and Vacuum Pump 5500Liters

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	DFAC
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

Vacuum Jetting Truck With High Pressure Jetting Pump and Vacuum Pump 5500Liters

Dongfeng 5.5m3 Multifunction High Pressure Washing Type Liquid Suction Truck

DONGFENG 5500L SEWAGE SUCTION AND HIGH PRESSURE WASHING TRUCK
Chassis brand: DONGFENG
Wheel base: 3300mm
Engine: CY4102-C3F,95hp,euro 3
Vacuum tank volume: 4000L
Washing tank volume: 1500L

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking

Multifunction High Pressure Washing Type Liquid Suction Truck Is a New Type Vehicle, Which Combined The Water Washing Truck And Vacuum Suction Truck. Except The Use Of Collection, Transfer, Cleaning And Transportation Of Sludge, Sewage, It Can Also Fuction As Washing Truck. Vacuum Sewage Suction Tank Can Be Self-Priming And Self-Draining, The Water Tank Is Equipped With Nozzles, So That The Truck Can Be Used To Clean Up The Street. The High Working Efficiency, Large Capacity, Convenient Transportation,Multifunction Make Vacuum Sewage & Pressure Washing Truck Suitable For Collection And Transportation Of Sewage , Mud, Oil And Other Liquid Substance, As Well As Cleaning And Washing. Vacuum Sewage Tank Adopts Domestic Technology Leading Vacuum Pump That Has Large Suction Power, Wide Suction Range, Especially Applicable For Sewer Sediment Suction, Loading And Unloading. The Most Extinguishing Advantage Is That It Can Suck Sewer Mud, Mud, Stones, Bricks And Other Large Objects.

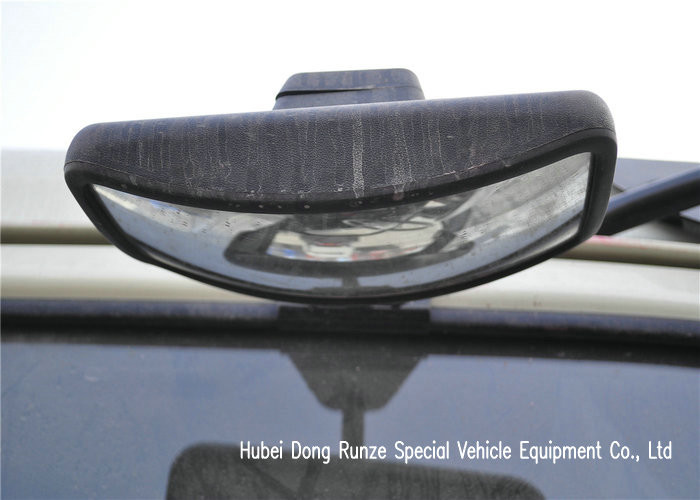

Truck Photo show:

Vacuum Jetting Truck With High Pressure Jetting Pump and Vacuum Pump 5500Liters

Vehicle parameters
Vehicle Model	DRZ060GQXWE	Vehicle Brand	DRZ
Overall dimensions	6910X2080X2500mm	Curb weight	4550kg
Vacuum tank volume	4000L	Washing tank volume	1500L

Chassis parameters
Chassis model			EQ1060TJ20D3	Chassis brand	DONGFENG
Overall dimensions			5820x1940x2080mm	Wheel base	3300mm
Front/rear wheel track			1506/1466mm	Front/rear suspension	1032/1488mm
Approach/departure angle			19/15°	Maximum speed	80km/h
Chassis Manufacturer			Dongfeng Automobile Co.,Ltd
Cab	Configuration		Single row cab,allowable 3 passengers
	Color		White,other color is optional
Engine	Model		CY4102-C3F
	Emission		Euro 3
	Type		in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		95hp,rated power speed 3200rpm
	Displacement		3856ml
	Bore x stroke		102x118mm
	Manufacturer		Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire	Size		7.00-16 nylon tire
	Number		6+1 nos
Fuel tank	100L,steel
Front axle	2.0T
Rear axle	4.0T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	5 speed forward 1 reverse.
Steering wheel	Left hand drive
Selective configuration		Air Conditioner,steel wire tire,power assisted steering
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Vacuum suction and pressure washing tank structure parameters
Vacuum tank volume		4000L	Washing tank volume	1500L
Tank material		Carbon steel	Vacuum tank thickness	6mm
Washing tank thickness		4mm	Color and Logo	Optional
Domestic vacuum pump
Model		XD-63	RPM	900r/min
Italy plunger pump
Model		VX-B 130/160	RPM	1000r/min
Standard configuration	Chassis, sub frame, pressure washing tank, Italy plunger pump, reel with 60 meters pressure hose,10pcs stainless steel high pressure nozzles, tool box; vacuum sewage tank, oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge, suction hose, gravity flow valve, vacuum tank, connected device, observation tube, automatic anti overflow valve, hydraulic suite, rear door hydraulic opening.
Selective configuration

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	35working days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and vacuum suction and pressure washing tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking
