DFAC 3500L-5000L Fecal Sewage Suction Tanker Truck With Hydro Jet Plumbing

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

DFAC 3500L-5000L Fecal Sewage Suction Tanker Truck With Hydro Jet Plumbing

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	DFAC
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

DFAC 3500L-5000L Fecal Sewage Suction Tanker Truck With Hydro Jet Plumbing

DFAC 3500L-5000L Fecal Suction Truck Sewer Jetting Trucks With Hydro Jet Plumbing As Cesspit Emptier

DFAC 4*2 driven 3500L-5000L fecal suction truck sewer jetting trucks

Sewer jetting trucks Suction System Specification
Tank
Tank Capacity (m3)	3 ,4,5
Tank Material	Q235A carbon steel (Stainless steel is optional)
Tank Shape	Roundness
Tank Size ( length * diameter)(mm)	3500*1500
Vacuum pump
Model	China famous Runli (Optional)
Max Vertical Suction (m)	≥8
Absolute Working Pressure (pa)	8500
Rated Speed	500
Rated Pumping Speed (L/s)	98
Pump inlet diameter (mm)	50
Container Filling Time (s)	≤5
Container Emptying time (s)	≤5
Chassis Specification
Truck Model	EQ1060
Engine
Model	CY4102-C3F
Type	Four-cylinder, water-cooled, mechanical injection
Rated power (Hp)	95
Transmission
Model	DONGFENG
Type	5 Forward & 1 Reverse Speed
Travelling
Drive Model	4 x 2
Steering Wheel Position	Left hand drive
Max. Travelling speed	95
Dimension do
Overall Size (mm)	5850x 2200 x 2950
Tyre Size	7.00-16
Wheel Base(mm)	3300
Weight
Curb Weight (kg)	4600
Payload Capacity (kg)	4000
Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure. Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates. Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces. Engaged and disengaged from drivers cab. Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck manufacturer’s prescriptions. Painting: All steel parts are sand blasted before painting. One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand. Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers

It is formed of PTO, transmission shaft, vaccum pump, tanker,

hydraulic system and pipe system.The time of loading full tank less than 5min,head much more than 5m

Carbon steel, stainless steel

Cylindrical

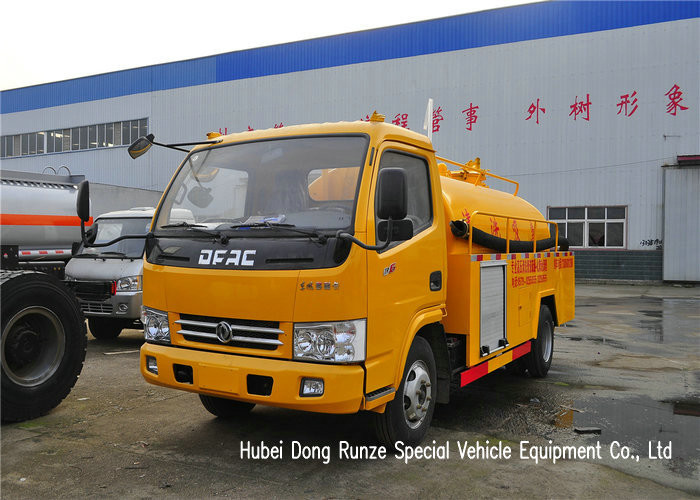

Truck Photo show:

DFAC 3500L-5000L Fecal Sewage Suction Tanker Truck With Hydro Jet Plumbing

sewer flushing truck in China.

General Description
1	Driving type	4*2, left hand drive
2	Overall Dimension	489017802120 mm
3	Kerb weight	2,160 Kg
4	Rated Payload	3000kg
5	Wheel base (mm)	3,300 mm
6	Fuel type	Diesel oil
7	Front/Rear axle	2,800 / 4,400 Kg
8	Tire	7.00-16, 6 +1 Pcs
9	Passengers	3
10	Volume of oil tank	95 L
11	Gearbox	Six speed lever, 5 speed forward with 1 reverse, manual

Engine Description
1	Brand	DFA
2	Model	CY4102
3	Displacement (L)	2.545 L
4	Emission Standard	EURO 3
5	Rated Power	95 Hp / 73Kw
6	Maximum Speed	95 Km/h

Function Description
1	Volume	3,000L
2	Tanker thickness	4 mm
3	Material of tanker	Q235 Carbon steel , Inside with Epoxyanti-corrosion technology
4	Pump type	Three-plunger pump, PRATISSOLI brand, from Italy
5	Flow	122L/min
6	Max working pressure	0 - 160bar
7	Safety devices	1. Low water level protection 2. Water particles protection

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% -70% balance after inspection before delivery
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	35working days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and vacuum suction and pressure washing tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
