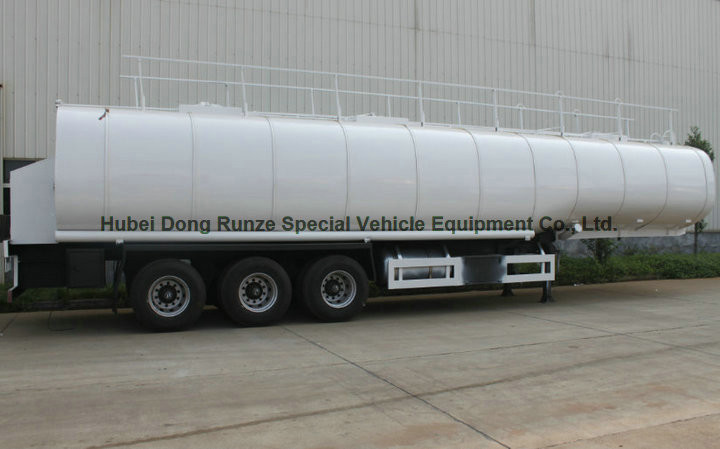

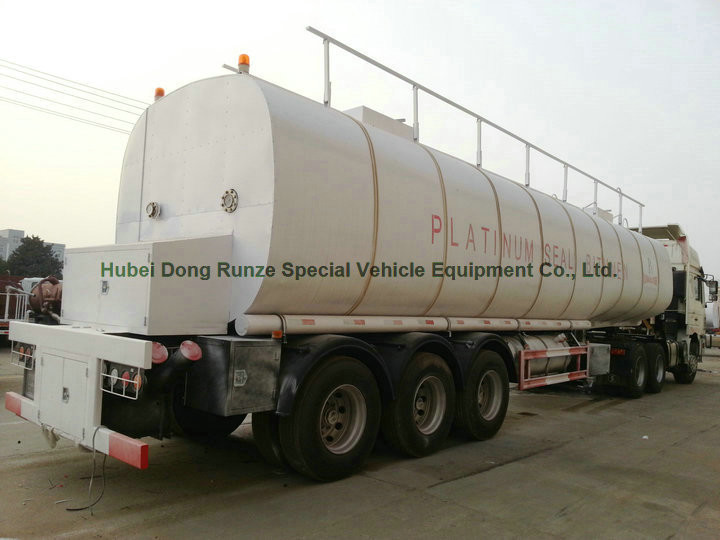

50Ton liquid Asphalt Tanker Semi-trailer with 2TBL45P BALTUR Heating and Insulation

Tank net Capacity: 45000L ~50000L

bitumen tanker semitrailer 45cbm with two Burner heater Insulated bitumen tanker trailer

50,000 liters 3 axle bitumen insulation tank semi-trailer

Tank volume:50,000 liters

Tanker material:Carbon steel-Q235A

Tank medium:Bitumen,liquid asphalt,coal tar oil,crude oil

No.of axle:3 axle BPW or FUWA

Heating system: 2 BALTUR TBL45P ITALY burner heating

Insulation layer:Rock wool 80mm and outer stainless steel cold plate

50Ton liquid Asphalt Tanker Semi-trailer with 2TBL45P BALTUR Heating and Insulation

Name of Goods	Description of Goods	Quantity	Unit Price	Total
DRZ9406GLQ Bitumen tanker trailer	DRZ9406GLQ Bitumen tanker trailer Three15TFUWA axles, 12R22.5tire, fitted With two diesel burner, one petrol generator, Tank Capacity:40000L, 50mm rock wood pLuS 50mm PUF Insulation water proof Insulated total 100mm cladding stainless steel	10units	FOB$27200	FOB $272000
Freight cost :	for the shipment and insurance	10	$100000	$100000
TOTAL amount	Saying: USD dollars only.		$372000USd CIF TEMA GHANA port

Delivery time:45days after receipt of deposit

Payment terms : T/T. pay 40% of total value for deposit, and the balance will be paid within 8 days before the shipment.
Packing: WAXED for sea transport

50Ton liquid Asphalt Tanker Semi-trailer with 2TBL45P BALTUR Heating and Insulation

Name of Goods	Description of Goods	Quantity	Unit Price	Total
ROAD tank trailer	ROAD tank trailer FOR HOT WAX TRANPORT Three15TFUWA axles, 12R22.5tire, fitted With two diesel burner, one generator, Tank Capacity:50000L, Insulated by 100mm rock wool, cladding carbon steel	6units	$31,600USD	$189,600USDFOB
Freight cost :	for the shipment and insurance
TOTAL	Saying: USD dollars only.		$189,600USD

Curb weight	Kg	12,800
Rated loading weight	Kg	50,000
Overall dimension	mm	13600x2600x3900
Tank volume	M3	50m3, 50000 liters wax tanker trailer
Front/Rear overhang	mm	/900
Track span	mm	1310
Chassis description		Heavy duty and extra durability designed I beam; Middle Flange 6 or 8mm; Bottom Flange 16mm,width 140mm
Axles		3 axle with FUWA brand, axle load:13,15 Tonx3
Suspension type		Mechanical suspension or air suspension-upon customer's requirement
King pin	Inch	50mm or 90mm 2 or 3.5 inch Bolt-in King Pin on your requirement
Landing gear	42 Ton, Two-speed manual, heavy duty landing gear (JOST or FUWA brand-optional)
Leaf of spring	Piece	9/9/9,or 10/10/10
Breaking system		WABCO re 6 relay valve, Spring brake chamber
Electric system		Voltage 24V,7 pin socket
Tire specification		brand tire 12R22.5,Total 12 tires
Tank material		Q235A carbon steel from WISCO
End plate material		Q235A carbon steel from WISCO
Rated work Pressure		0.2Mpa
Manhole Cover	Set	500mm manhole cover, 2 set
Outlet discharge Pipe		2 unit,6m
Inlet hole		2 unit 500mm inlet hole
Discharge hole		2 unit discharge hole
Accessories	Set	A. One set of spare tire including a carrier, one tool box B. Ladder: In left and rear position, width>250 C. Walkway: Width>1500mm D.Two fire hydrant
Paint	As required;
Heating and insulation system	Insulating layer 1. Tank containing keep warm by insulation layer 2. Insulation layer composed of: 100mm rock wool and 1.2mm carbon steel cold plate covered, it can prevent the heat losing.Heating system 1.Use Burner heater 24 hours continuous heating at back of the tanker 2.Two Italian BALTUR oil burner Capacity: 14*104Kcal/h, brand-new 3. One general-purpose petrol generator 4.According to continuous diesel burning to keep warm for the WAX (Diesel consumption:150kg/24hours) Note: It’s not necessary to adopt 24 hours continuous burning, you just only need begin to heat ahead of 4-5 hours while approach the destination site. It will save oil consumption and cost for you
