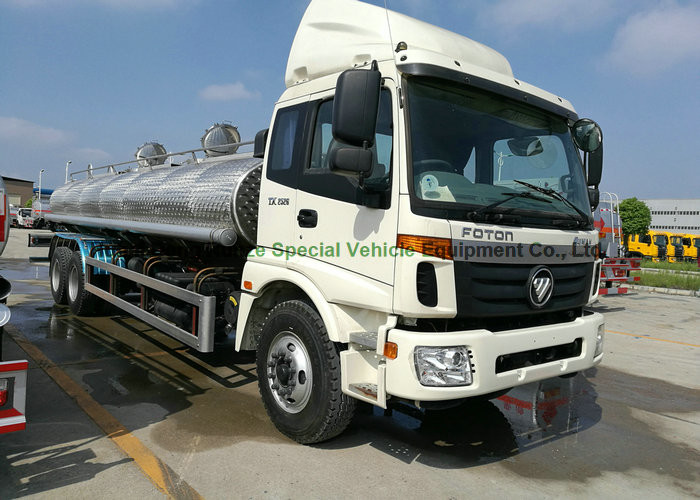

FOTON Stainless Steel Tanker Trucks 8,000Litres -21800liters for Drinking Water , Liquid Food ,Oil Etc.

FOTON Stainless Steel Tanker Trucks ,Drinking Water Tanker , Liquid Food Tanker

FOTON Polished Stainless Steel Tanker Trucks 18000liters for Drinking Water , Liquid Food ,oil​Liquid Food Transport Tanker Truck Fresh Milk Trucks

Factory direct sale

Foton Auman 10 wheeler 6*4 15m3- 20m3 stainless steel edible oil tanker truck for sale

China Foton 6x4 Stainless Steel Water Truck with High-Quality, ... Find Stainless Steel SprayingTruck,Water Spraying Truck,Water Tanker Truck

Capacity of tanker:18,000Litres-24000Litres

FOTON stainless steel water tank sprinkler truck 22000L

Overall dimensions 10350X2490X3010mm Curb weight 9500kg
Tank dimensions 7000X2300X1600mm Tank volume 22000L

Chassis parameters
Chassis model BJ5257GNFJH-S1 Chassis brand FOTON
Overall dimensions 10067x2490x3010mm Wheel base 4725+1300mm
Front/rear wheel track 1930/1860/1860mm Front/rear suspension 1532/2510mm
Approach/departure angle 11/12° Maximum speed 79km/h
Chassis Manufacturer Beijing Foton Daimler Motor Co., Ltd.
Cab Configuration ETX2420 a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner
Color White, other color is optional
Engine Model SC9DK270Q3B1
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection, exhaust valve brake, diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 8820ml
Max.torque 1125N.m
Bore x stroke 114x144mm
Manufacturer Shanghai Diesel Engine Co., Ltd
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 350L aluminum alloy
Rear axle 10.0 tons
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gear box 9JS,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 7000X2300X1600mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

Unique Optional Tank material:Stainless, carbon steel,carbon steel lined PE plastic, Aluminum alloy, High strength plastic steel

the tank body is made of food grade stainless steel 304-2B, widely used in transporting, loading and unloading milk, fresh fruit juice, edible oil, bulk beer and other fresh liquid food. We can supply milk tank semi trailer from 30000L to 45000L.

It have particularly good insulation, anti-corrosion effect . It adopt food grade stainless steel material, can be seperated several different warehouse to load different foods, it have cleaning, health, environmentally friendly, good insulation performance, etc features.

1. The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling).
2.The thickness of thermal insulation layer is 80mm
3. The tank liner is made of high quality food grade stainless steel,and the inner tank has been fine polished.
4. Equipped with PIC cleaning devices.
5. With function of thermal insulation: medium temperature change≤1°C during 24 hours.
6. The tank can be diveded into several parts according to demand to load different matrials

15000Liters Fuel Tanker, 5000Liter Fuel Truck, 5000Liters Fuel Tank Trucks, 5m3 Fuel Trucks, ISUZU Diesel oil trucks, ISUZU fuel dispensing trucks, ISUZU Fuel Oil Delivery Trucks, ISUZU Fuel Tank Transport Delivery Truck, ISUZU Fuel Tank Trucks, ISUZU Fuel tanker, ISUZU Fuel Trucks petrol/diesel transport truck, ISUZU FVR Fuel tanker trucks, ISUZU Mobile Dispensing Fuel Truck, ISUZU Refilling Fuel Tank Trucks ISUZU Fuel Dispenser Trucks, ISUZU Truck with Fuel Tank, Jet Fuel Truck, Mobile Fuel Trucks, Mobile Station Truck, Refuel Tank Truck Bulk Oil Trucks, Trucks with Fuel Tanker

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
