Portable Tank Container
40FT Customizing Acid Tank ISO Hydrochloric Acid Solution 28,
000liers -40, 000liers HCL(max 35%), NaOH (max 50%), NaCLO (max
10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3.
H2O,H
20FT HCL Acid ISO Tank Containers UN1789 Steel Lined PE 16mm
18000Liters -22000Liters
steel lined PE 16mm -18mm LDPE
Shell 5mm, 6mm
Tank net Capacity: 18000L ~20000L
Chloran；Hydrochloric Acid solution; HCL Tank Container transport
solution.
Name Hydrochloric acid Tank container
Box type T4/T7
Volume (M3) 20~22
Design pressure (MPA) 0.3
Design temperature range (℃) -20~+55
Filling medium Hydrochloric acid UN1789 hydrochloride
Main material steel lined plastic q235b/q345r + LLDPE7042 (PE)
Nominal thickness of shell (mm) 6/8
Heating mode without
Operating quality (kg) 30480
Shape size (mm) 6058*2438*2591
Loading and unloading type mounted on unloading or upper unloading

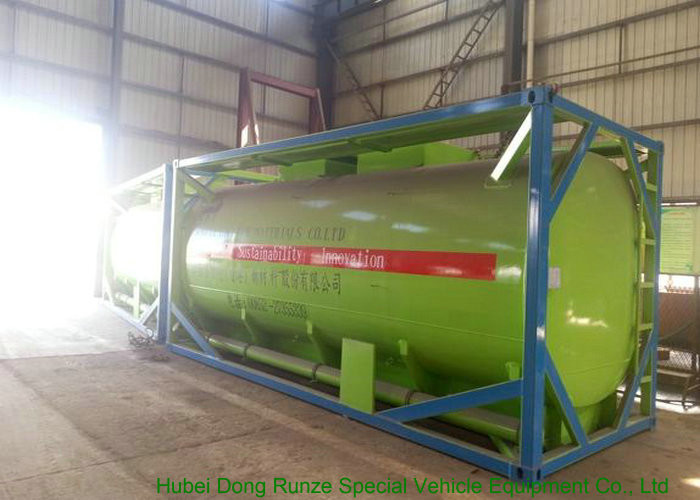

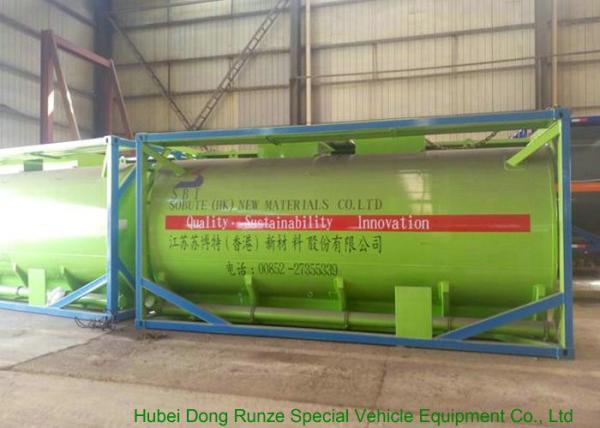

Tank Photo show:
Transporting: Hydrochloric Acid / HCL,Sodium hypochlorite /NaClO
,SULFURIC ACID less than 89% ,Acid Liquid Emulsion
20ft Tank container
|
| Ext. Length | 6,058mm | Ext. Width | 2,438mm | |
| Ext. Height | 2,591mm | M.G.W. | 30000-34000kg | |
| Tare | 5200 -6800Kg | Max. Payload | 22000-28000Kgs | |
| Cubic Capacity | 20 -22m³ 20000 -22000Liter | Tank Design Standard | GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835.China
classification society container inspection standard. | |
| Max. Design Pressure | 2.67 bar | Calculated Pressure | 10.0bar | |
| Testing Pressure | 4.0bar | Design Operating Temp. | -20℃～65℃ | |
| Lining | PE Polythene lined | Material of Tank Body | Carbon steel Q235 +LDPE | |
| Tank Body Dia. | 2,000mm | Tank Body Thickness | 6 .0mm+16mm | |
| Manhole Dia. | 500mm | Stacking | No | |
| Facilities |
| Charging Valve | | Discharging Valve | valve DN80 | |
| Air Inlet Valve | 1.5" BSP | Pressure Relief Valve | relief valve | |
Acid tank- Commercial Invoice
- Packing List
- Full sets of Clean On Board B/L, marked "Freight Prepaid"
- Certificate of Origin made in China in which issued date will be
the same or before the signing date of B/L in 3 copies. Form E
issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU
- Insurance Policy covering all risks for 110% of Invoice value.
- Certificate of Quantity and Quality issued by the Manufacturer.
Physical properties
The physical properties of hydrochloric acid, such as boiling and
melting points, density, and pH depend on the concentration or
molarity of HCl in the acid solution. They can range from those of
water at 0 percent HCl to values for fuming hydrochloric acid at
over 40 percent HCl.
Conc. (w/w)
c : kg HCl/kg | Conc. (w/v)
c : kg HCl/m3 | Conc.
Baumé | Density
ρ : kg/l | Molarity
M | pH | Viscosity
η : mPa·s | Specific
heat
s : kJ/(kg·K) | Vapor
pressure
PHCl : Pa | Boiling
point
b.p. | Melting
point
m.p. |
| 10% | 104.80 | 6.6 | 1.048 | 2.87 M | -0.5 | 1.16 | 3.47 | 0.527 | 103 °C | -18 °C |
| 20% | 219.60 | 13 | 1.098 | 6.02 M | -0.8 | 1.37 | 2.99 | 27.3 | 108 °C | -59 °C |
| 30% | 344.70 | 19 | 1.149 | 9.45 M | -1.0 | 1.70 | 2.60 | 1,410 | 90 °C | -52 °C |
| 32% | 370.88 | 20 | 1.159 | 10.17 M | -1.0 | 1.80 | 2.55 | 3,130 | 84 °C | -43 °C |
| 34% | 397.46 | 21 | 1.169 | 10.90 M | -1.0 | 1.90 | 2.50 | 6,733 | 71 °C | -36 °C |
| 36% | 424.44 | 22 | 1.179 | 11.64 M | -1.1 | 1.99 | 2.46 | 14,100 | 61 °C | -30 °C |
| 38% | 451.82 | 23 | 1.189 | 12.39 M | -1.1 | 2.10 | 2.43 | 28,000 | 48 °C | -26 °C |
The reference temperature and pressure for the above table are 20
°C and 1 atmosphere (101 kPa).
Hydrochloric acid as the binary (two-component) mixture of HCl and
H2O has a constant-boiling azeotrope at 20.2 percent HCl and 108.6
°C (227 °F). There are four constant-crystallization eutectic
points for hydrochloric acid, between the crystal form of HCl·H2O
(68 percent HCl), HCl·2H2O (51 percent HCl), HCl·3H2O (41 percent
HCl), HCl·6H2O (25 percent HCl), and ice (0 percent HCl). There is
also a metastable eutectic point at 24.8 percent between ice and
the HCl·3H2O crystallization
