20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	20FT
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame

20FT Bulk Cement Tank Containers 20000Liters - 22500Liters

20ft Hydrochloric acid, Sodium hypochlorite Tank Containers with pipe bottom loading
$14500.00
$18800
Add to Cart Buy Now
Yellow Phosphorus tank Container 20ft stainless steel with Heating Insulated System
$26000.00
$30000
Add to Cart Buy Now
NH3 ISO Tank Container 20FT 24000L Anhydrous Liquid Ammonia IsoTank
$24000.00
Add to Cart Buy Now
30FT Customizing Acid Tank ISO Hydrochloric Acid Solution 18, 000liers -30, 000liers
Add to BasketInquire
30FT 40FT Sulfuric Acid ISOTank Container 25KL -30KL
Add to BasketInquire
40FT Customizing Acid Tank ISO Hydrochloric Acid Solution 28, 000liers -40, 000liers HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H
Add to BasketInquire
30FT 40FT Hydrochloric Acid ISO Tank Container 26KL -28KL Steel Tank Lined LDPE 16mm
Add to BasketInquire
Custermizing ISO Tank Containers trailer for Hydrochloric Acid, Sodium Hypochlorite
$18000.00
$20000
Add to Cart Buy Now
40FT Sodium Hydroxide Solution Stainless Steel Tank for Trailer Portable ISO Tank Containers
$18000.00
$22000
Add to Cart Buy Now
Custermizing HCL 32-35% Hydrochloric Acid Tank for Trailer Portable ISO Tank Containers
$18000.00
$19800
Add to Cart Buy Now
20FT LPG Tank Container with LPG GAS Pumping Dispenser LPG Gun
$22000.00
$24000
Add to Cart Buy Now
Hydrochloric acid, Sodium hypochlorite Tank Containers 30ft
$14500.00
$16800
Add to Cart Buy Now
45ft chemical Tank Container Customization
Add to BasketInquire
40ft Portable Tank Container
Add to BasketInquire
U.N. Tank Transport Instructions T 22 Stainless Steel Ball Tanks
$21000.00
$22000
Add to Cart Buy Now
Swap Body Tank Container 26.000 – 35.000 Liter
$28000.00
$30000
Add to Cart Buy Now
30ft tank container <Customization>
Add to BasketInquire
Portable iso Tank Container 20000L-24000L Solvents, antifreeze Ethylene glycol
Add to BasketInquire
T4 20000L-24000L T4 Sewage tank container
Add to BasketInquire
DTA iso tank container for cement / coal ash pneumatic ash fly container

Specification 1

Specifications
Approval	Construction		LR / BV / CCS
	Vessel		IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
External Dimensions			6058 x 2438 x 2591	MM
			20 x 8 x 8.5	FT
Capacity			20000	L
Payload			26430	KGS
Tare Weight			4050	KGS
Max Gross Weight			30480	KGS
Stacking			192000	KGS
Design Pressure			4	BAR
Design Temperature			-40 to 50	℃
Material		Frame	SPA-H (Corten-A)
		Vessel	SA516M
Include		Manhole, Ladder, Discharge Pipe and flange
Applications:		Cement

Specification 2

Dimensions
Loading Capacity	22500 liters	5943 US gallons
Tank Volum	26000 liters	6868 US gallons
Max Gross Weight	32000 kgs	70548 lbs
Tare Weight	4200 kgs	9260 lbs
Construction
Working Pressure	2.2 bar	32 psi
Test Pressure	3.3 bar	48 psi
Relief Valve Set Pressure	2.2 bar / -021 bar/vac	32 psi / -3 vac/psi
Ambient Temp. Range	-19 °C ~ + 80 °C	-2.2 °F ~ + 176 °F
Maxium Cargo Temp.	80 °C	176 °F
Shell Material	Q345B
Design code	ASME, ISO, CCS, etc

Specification 3

20feet tank container	Unit
Ext. Length	mm	6058
Ext. Width	mm	2438
Ext. Height	mm	2591
M.G.W	kg	30,480
Tare	kg	4,950
Max. Payload	kg	25,530
Cubic Capacity	m³	22
Stacking	Unit high	5
Air Source Pressure	Mpa	0.25
Air Supply	m³/min	20
Air Inlet Dia.	mm	50
Cargo Inlet Dia.	mm	450
Cargo Outlet Dia.	mm	150
Loading Temp.	°C	<80
Ave. Speed of Discharging (pump into silo in 30m far and 30m high)	t/min	2.0-2.5
Residual Ratio		≤3

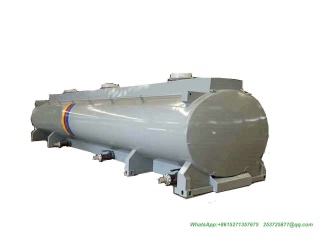

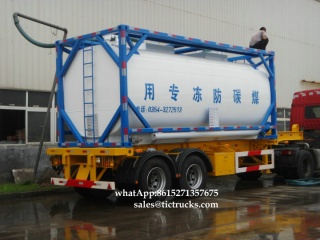

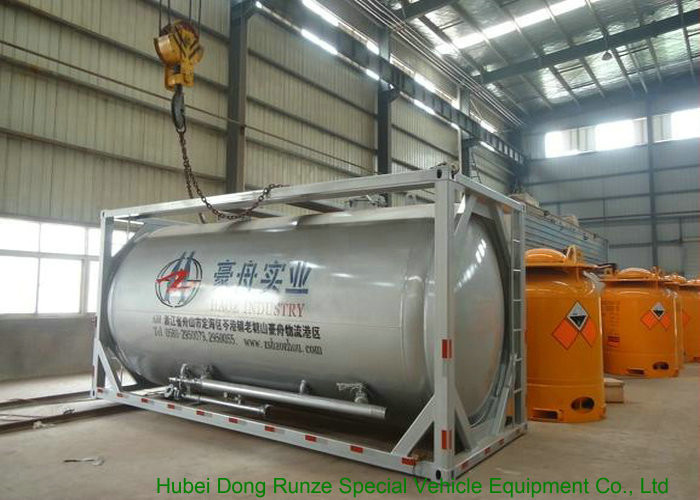

Tank Photo show:
