FOTON 6x2 AUMAN 25000L Oil Tanker Truck With Stainless Steel Fule Tank

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

FOTON 6x2 AUMAN 25000L Oil Tanker Truck With Stainless Steel Fule Tank

Ask Lasest Price
Brand Name :	FOTON
Model Number :	DRZ
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

FOTON 6x2 AUMAN 25000L Oil Tanker Truck With Stainless Steel Fule Tank

FOTON 6x2 AUMAN 25000L Refuel Tank Truck With Stainless Steel Fule Tank PTO Fuel Pump

Standard configuration

Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.

Selective configuration

Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments.

Fuel tank structure parameters
Tank dimensions		7400x2450x1800 mm	Tank volume	25000L
Tank material		Carbon steel	Tank thickness	5/6mm
			Color and Logo	Optional
Standard configuration	Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration	Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments.

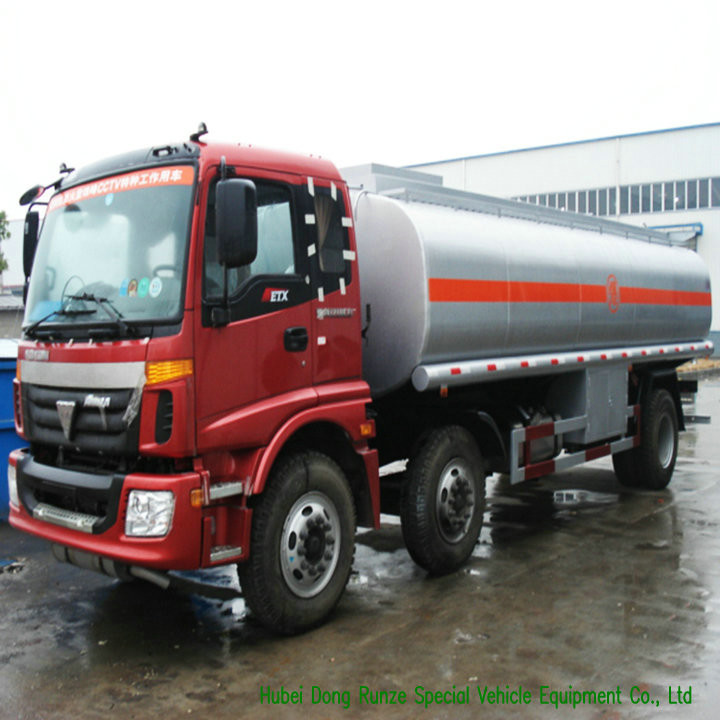

Truck Photo show:
FOTON 6x2 AUMAN 25000L Oil Tanker Truck With Stainless Steel Fule Tank

Vehicle Model	DRZ 5253GYYB	Vehicle Brand	DRZE
Overall dimensions	10350x2490x3350mm	Curb weight	8105 kg
Tank dimensions	7400x2450x1800 mm	Tank volume	25000L

Chassis parameters
Chassis model		BJ5253GYY-XA	Chassis brand	FOTON
Overall dimensions		10225X2490X2800, 3380mm	Wheel base	1860+4800mm
Front/rear wheel track		1890/1940,1847mm	Front/rear suspension	1365/2200mm
Approach/departure angle		18/12	Maximum speed	79km/h
Chassis Manufacturer		Beijing Foton Daimler Motor Co., Ltd.
Cab	Configuration	ETX a row and a half cab(with sleeping berth), ETX interior, air conditioner, airbag seat
	Color	Blue, other color is optional
Engine	Model	ISDe210 40
	Emission	Euro 4
	Type	6 cylinders, in-line,direct injection,4-stroke,water-cooled, turbo-charging ,diesel engine
	Rated power	210hp,rated power speed 2500rpm
	Displacement	6700ml
	Bore x stroke	124X107mm
	Manufacturer	Dongfeng Cummins Engine Co.,Ltd
Tire	Size	10.00R20 steel wire tire
	Number	8+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	380L
Front axle	5.0T
Rear axle	10.0T
Drive form	6X2
Rated voltage	24V,DC
Transmissions	7 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
