DFAC 6x4 Small Concrete Mixer Truck 8 Cbm , Moblie Concrete Batch Truck

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

DFAC 6x4 Small Concrete Mixer Truck 8 Cbm , Moblie Concrete Batch Truck

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	EQ
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

DFAC 6x4 Small Concrete Mixer Truck 8 Cbm , Moblie Concrete Batch Truck

DFAC 6x4 Concrete Mixer Truck 8cbm

Chassis brand: DONGFENG
Load Capacity: 8m3
Drive Form: 6x4
Engine Model: Cummins Isle340 40, 340hp,Euro4
Steering Wheel: Left Hand Drive

Vehicle parameters
Vehicle Model	DRZ5253GJBE2	Vehicle Brand	DRZ
Overall dimensions	9100×2500×3760mm	Curb weight	12920kg
Loading capacity	8m3

Chassis parameters
Chassis model			EQ5253GFJ2	Chassis brand	DONGFENG
Overall dimensions			8550x2480x3200mm	Wheel base	4000+1350mm
Front/rear wheel track			1940/1860/1860mm	Front/rear suspension	1250/1750mm
Approach/departure angle			32/18°	Maximum speed	85km/h
Chassis Manufacturer			Dongfeng Motor Corporation
Cab	Configuration		DONGFENG 1230 a row and a half deluxe cab(with sleeping berth),allowable 3 passengers
	Color		White, other color is optional
Engine	Model		Cummins ISLe340 40
	Emission		Euro 4
	Type		6 cylinders, in-line,4-stroke, turbo inter-cooling,diesel engine
	Rated power		340hp,rated power speed 2100rpm
	Displacement		8900ml
	Max.torque		1500N.m
	Bore x stroke		114x145mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		11.00R20 steel wire tire
	Number		10+1 nos
Frame	280×80×(7+5)mm
Front axle	5.0T
Rear axle	11.5T
Drive form	6X4
Rated voltage	24V,DC
Transmissions	EATON
Gear box	FULLER, RT-11509C, 9 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Air Conditioner
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Concrete mixer truck structure parameters
Loading capacity	8m3	Tank material	5mm alloy steel
Tank front head	8mm alloy steel	Reducer	Germany ZF3301
Hydraulic pump	Germany REXROTH	Hydraulic motor	Germany REXROTH
Radiator	KAIPENG	Color and Logo	Optional
Standard configuration	chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Standard configuration	Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration	Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.

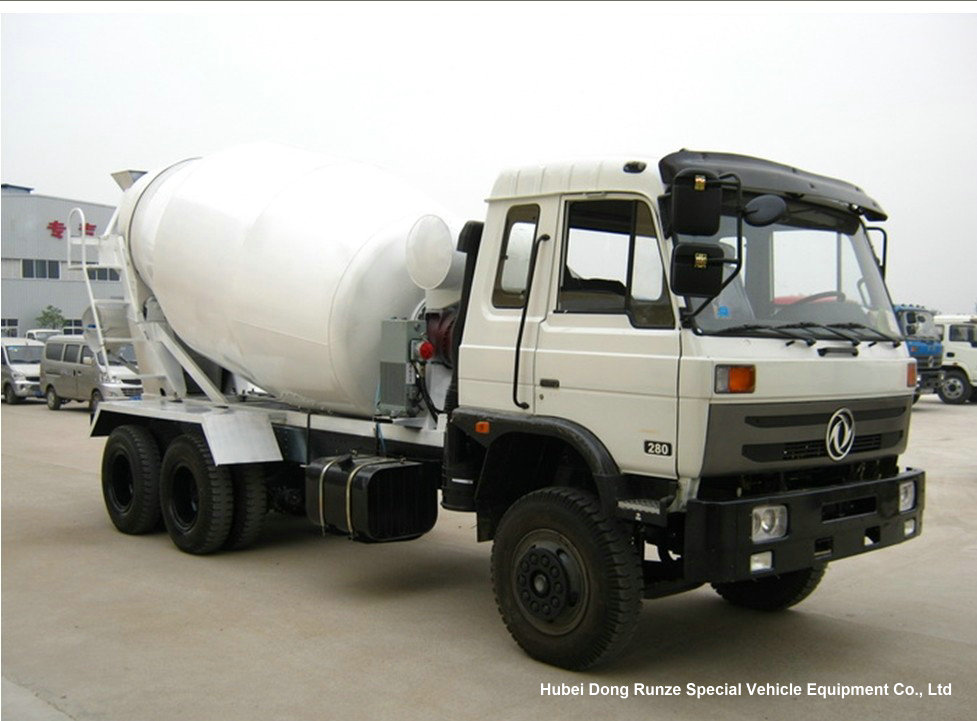

Truck Photo show:
DFAC 6x4 Small Concrete Mixer Truck 8 Cbm , Moblie Concrete Batch Truck

Technical Parameter

Dongfeng 6*4 cement mixer lorry 8 cbm 260 hp

Overall dimensions (L x W x H)mm	8800×2500×3800
Wheel base (mm)	3800+1300
Tare Weight	12500
Engine type	4-stroke , 6-cylinder in-line with water cooling, inter-cool and turbo-charge
Horse Power(HP)	260
Tyre	10.00R20 all steel radial tyre with one spare
Steering	hydraulic power steering
Mixer body	8 cbm mixer body made of high tensile steel, 6 mm thick
Hydraulic system	Italian ARK or TOP Hydraulic reducer, American EATON motor and pump adopted
Rotation speed	0-18 rpm

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
