Huyndai Nanjun Industrial Concrete Mixer Truck 6cbm 6120 X 2200 X 2600mm

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

Add to Cart

Huyndai Nanjun 6cbm Mini Concrete Mixer Truck

Chassis parameters
Chassis model		CNJ3120ZFP34M	Chassis brand	SICHUAN NANJUN
Overall dimensions		6120x2200x2600mm	Wheel base	3700mm
Front/rear wheel track		1750/1660mm	Front/rear suspension	1250/1470mm
Approach/departure angle		28/26°	Maximum speed	80km/h
Chassis Manufacturer		SICHUAN NANJUN AUTOMIBILE CO.,LTD
Cab	Configuration	allowable 3 passengers
	Color	white,other color is optional
Engine	Model	YC4D130-41
	Emission	Euro 4
	Type	4 cylinders,in-line,water-cooled, turbo inter-cooling, diesel engine
	Rated power	130hp
	Displacement	3767ml
	Bore x stroke	108×115mm
	Manufacturer	Guangxi Yuchai Machinery Group Co.,Ltd
Tire	Size	9.00-20 nylon tire
	Number	6+1 nos
Brake	Air brake
Fuel tank	120L
Rear axle	9T rear axle
Drive form	4X2
Rated voltage	24V, DC
Transmissions	6 speed forward 1 reverse
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

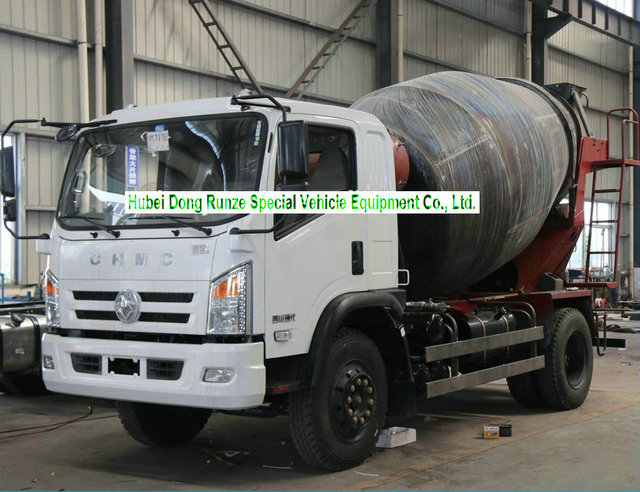

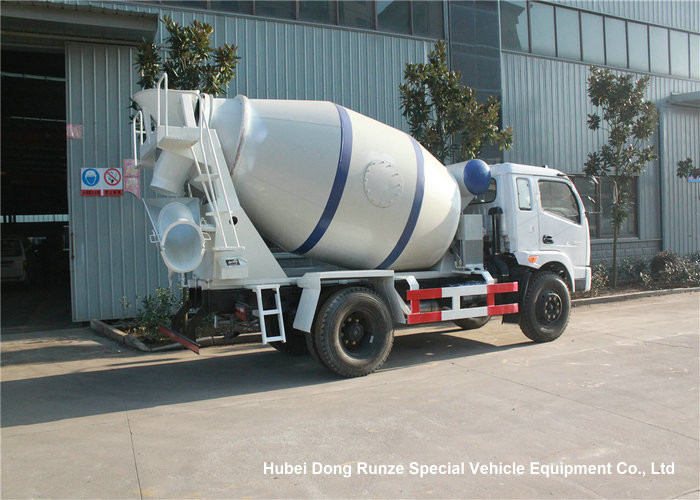

Truck Photo show:
Huyndai Nanjun Industrial Concrete Mixer Truck 6cbm 6120 X 2200 X 2600mm

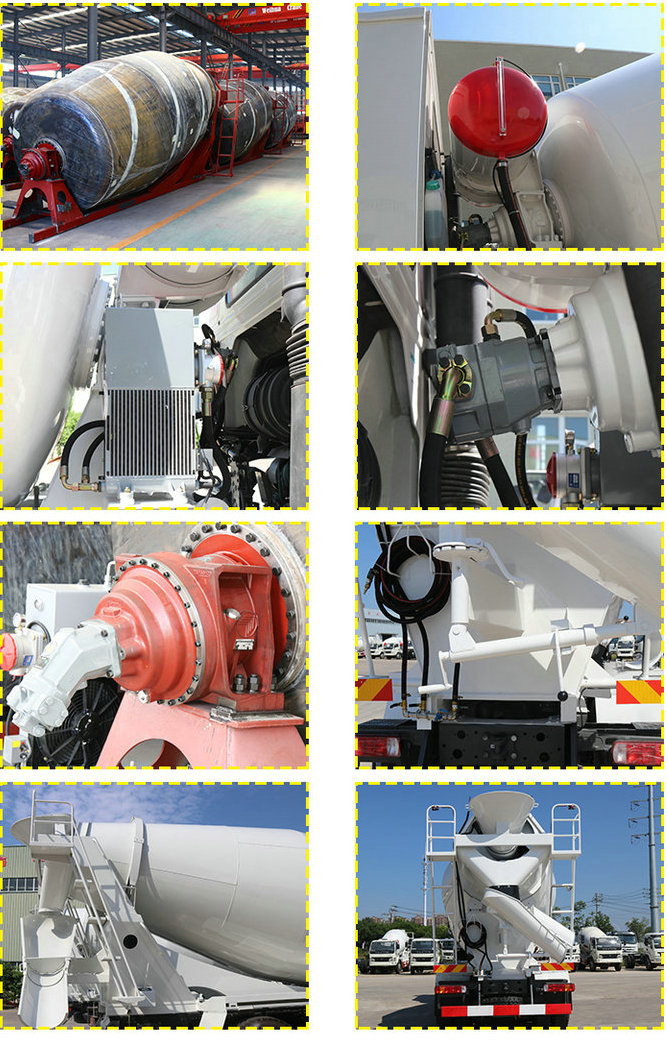

Concrete mixer truck structure parameters
Mixing capacity(m³)	6	Color and Logo	Optional
Feeding speed (m³/min)	≥3	Discharge speed(m³/min)	≥2
Discharge residual rate	≤0.5%	Slump scope(mm)	50-210
Water tank capacity(L)	300	Water pressure(Mpa)	0.35-0.38
Tank material	5mm alloy steel	Tank front head	6mm alloy steel
Reducer	Keyi	Hydraulic motor	Dali
Hydraulic pump	Changyuan	Radiator	ZHENGHUA
Standard configuration	chassis,sub frame,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material),domestic reducer,hydraulic pump,hydraulic motor,radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Selective configuration	1,American SALI56 hydraulicy pump, SALI63 hydraulic motor 2,Italy P071 hydraulic pump, M063 hydraulic motor 3,A full set of imported parts (ZF3301 reducer)

Technical Parameter

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
