Home > Tank Semi Trailer >

Carbon Steel Fuel Tank Semi Trailer 4 Axle for oil, diesel, gasoline, kerosene 55000 Liters

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

Carbon Steel Fuel Tank Semi Trailer 4 Axle for oil, diesel, gasoline, kerosene 55000 Liters

Ask Lasest Price
Brand Name :	Dong Run Ze
Model Number :	OEM
Certification :	C3
Price :	Negotiated at Weichat:King253725877
Payment Terms :	TT emial to <253725877@qq.com>
Supply Ability :	Ask us for Better Price <253725877@qq.com>
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

Carbon Steel Fuel Tank Semi Trailer 4 Axle for oil, diesel, gasoline, kerosene 55000 Liters

4 axles carbon steel oil tank semi trailer, crude oil tanker semi trailer

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking

Trailer Photo show:

Carbon Steel Fuel Tank Semi Trailer 4 Axle for oil, diesel, gasoline, kerosene 55000 Liters

Producing Process

Trailer description

30,000L-45,000L 3-axle Tank Semi-trailer
Feature:	Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
Dimension(LWH):	1100025003700mm(30,000L) 1170025003750mm(40,000L) 1270025003750mm(50,000L) 1300025003750mm(60,000L) 1370025003750mm(70,000L)
Model	DRZ9350GRY
Material:	Carbon Steel	Stainless Steel	Aluminum
Compartment:	3-6
Capacity(kgs):	30,000L-65,000L
Tare weight(kgs):	10,000-11,000kgs	10,000-11,000kgs	6,000-7,000kgs
Kingpin	The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”
Tire size	11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size	8.2522.5,9.0022.5,11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Leafs spring	Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system	One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole:	Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
Discharge Valve	Aluminum alloy discharge valve with cover
Foot Valve	Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system	1set Pneumatic Control combined switch 1unit emergency switch
Discharge Hose	2 units 3”×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system	Optional
Fire Extinguisher Carrier	2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system:	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting	S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer’s design and requirement

2

Overall Dimensions (LWH)	according to tank capacity to confrim
Tank Dimensions (LWH)	according to tank capacity to confrim
Volume	according to customer's needs
MAX. GVW	according to tank capacity to confrim
Kerb weight	according to tank capacity to confrim
Rated payload	according to tank capacity to confrim
TANK
Material	carbon steel / stainless steel / aluminum alloy
Thickness of shell	according to customer's needs
Thickness of dish	according to customer's needs
Compartments	compartment optional.(standard only one)
TANKER TOP ACCESSORIES
Aluminum Fold Ladder with handrail on the rear up to the tank top walkway. Anti-slip Walkway 400mm wide reach the manholes, not covering the complete length of the tank
TANKER EQUIPMENTS
Manhole	EURO standard manhole covers (20”) or (16") with filling opening. DN250 Pressure/vacuum valve.
Bottom valve	EURO pneumatic bottom valve / mechanical system
API connectors	aluminum handle and dust cap / mechanical ball valve discharging
Pneumatic swift combination	optional
Vapor Recovery System	vapor recovery valve and connector (optional)
Pump, PTO and cross shaft	1 set ( optional )
RUNNING GEAR
Axle	BPW 4*13T axles , single or double wheel. (optional FUWA axle , 1 axle, 2 alxe, 3 axle, 4 axles, or with lift axle)
Tire and Rim	8 / 16 pieces tires (385R22.5) or double wheels 8 / 16 pieces rims (8.0/9.0*22.5) or Aluminum alloy rims
Suspension	Mechanical suspension leaf spring (made in China), or Air suspension in FUWA or BPW.
King pin	JOST 2” or 3.5" kingpin
Landing legs	JOST / FUWA one pair landing legs
BRAKING SYSTEM
Double line air brakes Mechanical parking brake with WABCO emergency relay valve. WABCO ABS SYSTEM / EBS
ELECTRIC INSTALLATION
Complete 24V system in explosion proof installation (made in China) LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
PAINTING
One primer +final painting ------- Aluminum tank, we suggest to keep original that will be better. We can polish. The chassis is sand blasting. Tanker internal corrosion protection: F44 (Optional)
ACCESSORIES
Mudguards	PVC / Aluminium alloy Mudguards
Side protection	Aluminum side protection
Fire extinguishers carriers	2pcs
Spare tire carrier	1pcs
Tool box	1 tool box with our factory’s standard free tools

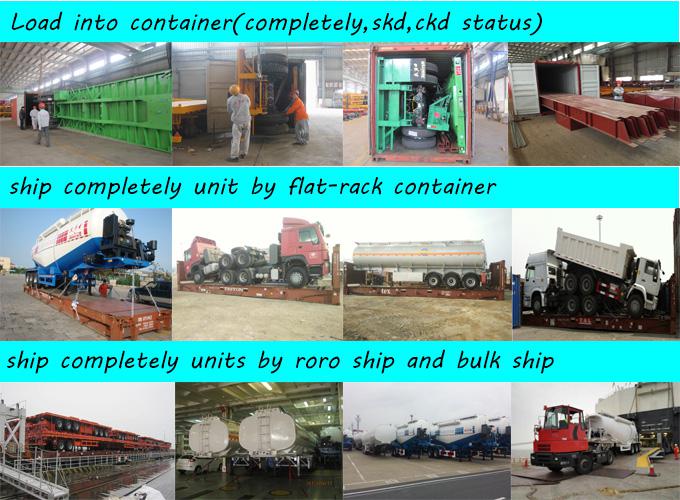

Loading and Packing

Warranty period and after sale service
2 axles 3 Axles Hydraulic Rear Dump Semi Trailer 30 ton 60 ton U shape
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
Cell: 0086 152 7 135 7635 ; 0086 152 7 135 7675
WhatsApp: 8615271357675 tictrucks#gmail.com
