Tri Axle Oil Fuel Petrol Diesel Tank Semi Trailer 5 Compartments
45m3 For African
Optional: 36cbm Fuel Tank Trailer, 38cbm Oil Tank Trailer, 40m3
Diesel Tank Trailer, 45cbm Liquid Tanker Truck Trailer, 48cbm Crude
Tanker Semi Trailer, 50,000liters Fuel Tank Trailer, 55,000 Liters
Oil Tanker Truck Trailer, 60,000 Liters Tank Truck Trailer,Etc.
Use Material: Carbon Steel, Aluminum Alloy(5454), Stainless
Steel(Ss304)

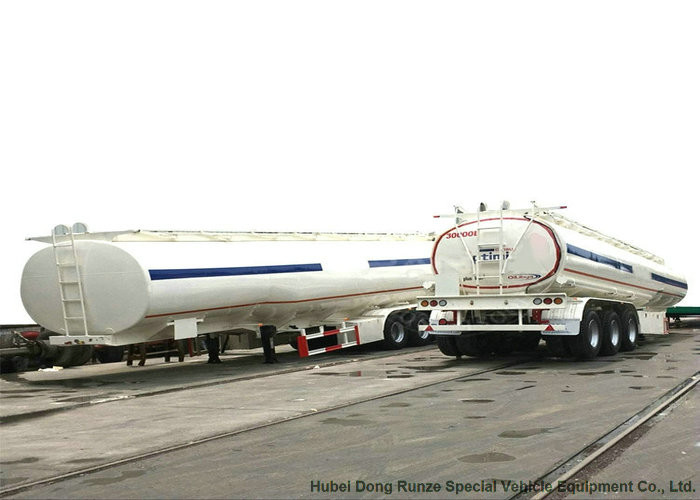

Trailer Photo show:
Stainless steel tanker trailers for carrying drink water, beer,
milk with food grade 304 stainless steel.
oil, diesel, gasoline, kerosene
Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
Producing Process
Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
Factory direct supply tanker semi trailer is used to transport
fuel, the capacity is from 30CBM to 60 CBM, the compartments are
1~6 compartments. Including steel tanker, stainless steel tanker
trailer and aluminum tanker. The tank body is Q235/5mm steel, End
plate Q235A/6mm steel sheet.
Trailer description
1
| Main Dimensions |
| Tank Body |
| Shape | Optional(Round or Suare) |
| Dimension | 12000mm*2490mm*3990mm(Exact size depend on the final design) |
| Tare Weight | About 8000Kg-12800Kg |
| Total Volume(m3) | 25m3-60m3 |
| Tanker Body Material | 5mm or 6mm Stailess steel |
| End Plate | 5mm or 6mm/Q235 Stailess steel |
| Manhole Cover | Stailess steel API manhole cover ,500mm |
| Bottom Volume | Stailess steel API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4” rubber hose,2 pcs,6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Welding design or special design I beam ,connected by bolts and
nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOSTD200T or China brand 28T |
| King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension(Germany or American type)/air suspension |
| Leaf spring | 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without |
| Pneumatic Braking System | WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air
tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| ABS | Optional |
| Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive
prime,2 coats of final paint |
| Accessories | One standard tool lox |
| Shipping Terms | By bulk cargo ship, RORO or 40HQ container |
2
| 30,000L-45,000L 3-axle Tank Semi-trailer |
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical
liquid |
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) |
| Model | DRZ9350GRY |
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 |
| Capacity(kgs): | 30,000L-65,000L |
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle | Original BPW-12T/ FUWA-13T |
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of
leafs spring/ Airbag suspension |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake
chamber; two units T30 spring brake chamber; two units reliable
local brand 45L air tank; two units reliable local brand standard
coppery air-connector. |
| Manhole: | Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with
breather valve; |
| Discharge Valve | Aluminum alloy discharge valve with cover |
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch |
| Discharge Hose | 2 units 3”×6M factory PVC hose with quick coupling on both ends |
| Vapor Recovery & Overfill system | Optional |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry
powder type fire extinguisher inside |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting |
| We can build the trailers according to customer’s design and
requirement |
2
Loading and Packing
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value
payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value
payoff before delivery after production finish
