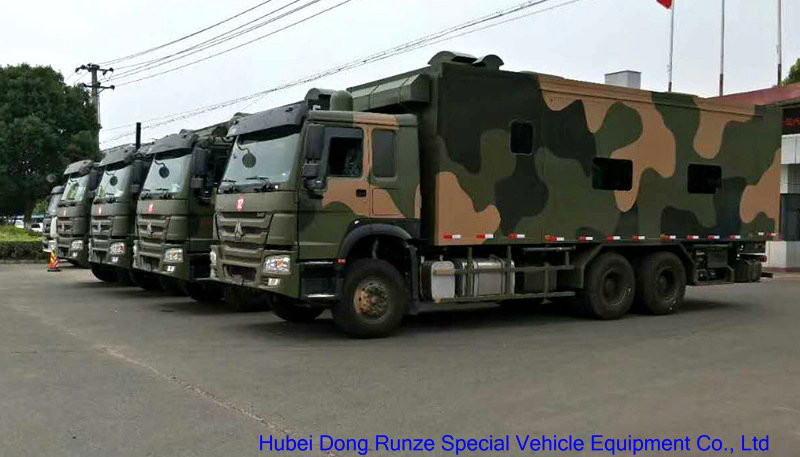

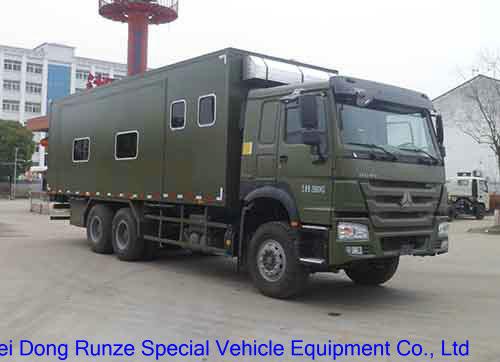

SINOTRUCK HOWO Camping Truck For Camping Outdoors 20 - 28 Staff
With Sleep Bed ,Extendable Van Sleeping Room
1. Office area Equipment Configuration
Serial number device name Model quantity Note
1 conference Table Homemade One
2 32"LCD TV 1 units
3 High-grade single seat 4
40 percent folding single seat 6
5 Air Conditioner 2 units 1. 5 horses.
6 Hanging Cabinet 1 sets
7 File Cabinet One
8 Lights 2
9 Top Fan One
10 Emergency Lights 1
UPS 1 Sets
12 power supply, telephone, network socket and interface to be
determined to connect as required
13 Curtains 4 Sets
2. Accommodation Area Configuration
Serial number device name Model quantity Note
1 upper and lower deck soft sleeper homemade 5 sets are decorated
with wooden wrapping edge
2 bedside lamp 10 Adjustable light
3 Caps Hook 10
40 percent stacked set of 10
5 Ceiling Fan 1 sets

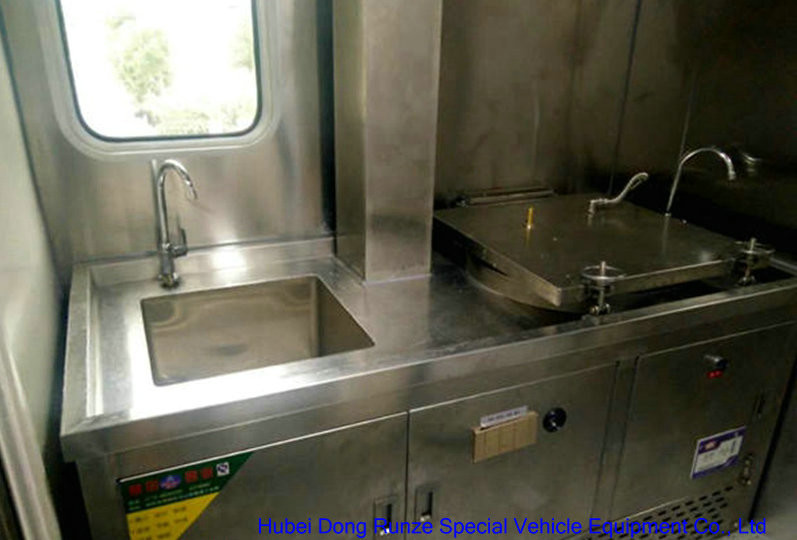

6 Double Sinks 1 Sets
7 Electric Water Heater 1 sets
8 Mattress 10 Sets of mat
9 Toilet Fan 1 sets
10 Lights 3 Sets
11 Emergency Light 1 sets
12 Socket 10 Sets
13 Curtains 11 Sets
3. Chassis Platform Configuration
Serial number device name Model quantity Note
1 Car Chassis Customer selected 1 units
2 Generator Set 1 sets 5-kilowatt
3 external Air conditioner 1 1 units
4 external Air Conditioner 2 1 units
5 Tools with Tarpaulin box 1
6 Tank and Awning box 1
7 Distribution Box 1 wire cable with mains connection
8 Tank pending Total 500 litres
4. Compartment configuration
Serial number device name Model quantity Note
1 roof Beidou antenna base 1
2 various lines and pipelines 1 sets
3 Side Pull Ladder 1 sets
4 Push-type movable window (large) 914x565 4 office area
5 Push-type movable window (small) 500x350 11 accommodation Area
6 Car Door 1 office area
7 sideslip Door 1 accommodation Area
8 Compartment Side Ladder 1 sets
9 Roof Guard 1 Sets
| Chassis: | ZZ1257N4347E1 | Fuel type: | diesel fuel |
| Engine: | D10.34-50; D10.38-50;... | Rated capacity (kg): | 8720 |
| Displacement (cc): | 9726; 9726; 9726; 9726 | Wheelbase (mm): | 4025+1350, 4000+1400,... |
| Power (kW): | 249; 276; 206; 228 | Dimensions (mm): | 10410 × 2500 × 3990 |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer |
|---|
| 1 | D10.34-50 | 9 726 cc | 9.7 L | 594 cu in | 249 kW | 339 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| 2 | D10.38-50 | 9 726 cc | 9.7 L | 594 cu in | 276 kW | 375 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| 3 | D10.28-50 | 9 726 cc | 9.7 L | 594 cu in | 206 kW | 280 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| 4 | D10.31-50 | 9 726 cc | 9.7 L | 594 cu in | 228 kW | 310 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| Performance |
|---|
| Fuel | diesel fuel |
| Environmental standard | Euro 5, |
| Maximum speed | 80 km/h | 50 mph |
| ABS | have |
| Capacity |
|---|
| Rated load capacity | 8720 kg | 8.7 t | 19,224 lbs |
| Weights and Ground pressure |
|---|
| Curb weight | 16150 kg | 16.2 t | 35,605 lbs |
| Gross vehicle weight rating | 25000 kg | 25 t | 55,000 lbs |
| Axle load distribution | 7000 kg / 18000 kg (tandem axle)
7 t / 18 t (tandem axle)
15,000 lbs / 40,000 lbs (tandem axle) |
| Dimensions |
|---|
| Overall length | 10410 mm | 34′2″ |
| Overall width | 2500 mm | 8′3″ |
| Overall height | 3990 mm | 13′2″ |
| Undercarriage and Suspension |
|---|
| Number of axles | 3 |
| Wheelbase | 4025+1350 mm,
4000+1400 mm,
4325+1350 mm,
4300+1400 mm,
4600+1350 mm,
4575+1400 mm | 13′3″+4′6″,
13′2″+4′8″,
14′3″+4′6″,
14′2″+4′8″,
15′2″+4′6″,
15′1″+4′8″ |
| Front track | 2022 mm,
2041 mm | 6′8″,
6′9″ |
| Rear track | 1830 mm / 1830 mm | 6′1″ / 6′1″ |
| Front overhang | 1500 mm | 5′0″ |
| Rear overhang | 3235 mm | 10′8″ |
| Angle of approach | 16° |
| Angle of departure | 16° |
| Leaf springs | 9 / 12, 9 / - |
| Tyres and Wheels |
|---|
| Number of tyres | 10 |
| Tyres dimension | 12.00R20 14PR, 12.00-20 16PR, 11.00R20 16PR, 11.00-20 |
| Miscellaneous |
|---|
| Seating capacity | 2 |
| Steering control | steering wheel |
