Beiben Mobile Workshop For Vehicle Maintenance Multifunctional Maintainging Truck

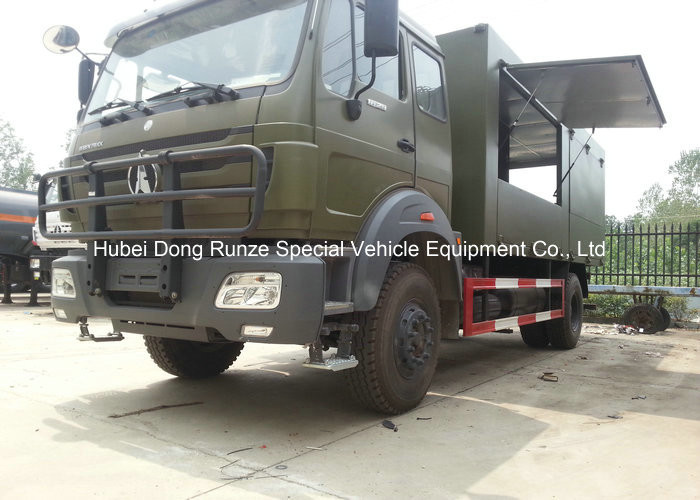

Truck Photo show:

Beiben Mobile Workshop Truck For Vehicle Maintenance , Multifunctional Maintaining Truck

1627 Mobile Workshop Truck
Complete Vehicle	Tare Weight	16,000 Kg
	Loading Capacity	4,050 Kg
	Drive Type	4 X 2
	Tyres	6+ 1; 12.00R20 STEEL TYRE,
	Max. Speed	85 KPH
	Max. Gradeability	30%
	Minimum Ground Clearance	298 mm
	Overall Dimensions	8790,8840 x 2520 x 3690 mm
	Wheel Base	4800 mm
	Fuel Tank Capacity	300L
	Engine	WP10.270) 6 Cylinder in Line, Water Cooling Diesel Engine, Turbo Charged with Intercooler; 270hp/2200rpm;
	Gearbox	FULLER RT-11509C; 9 Forwards & 1 Reverse
Equipment	Power Set (Generator)	Model: 40GF ; Rated Power 40KW; Voltage 400/230V; Frequency 50 Hz; Rated Current 72.2A; 3-Phase 4-Line; Diesel Engine R4100ZD; Generator TZH-40
	Welding Set	Model: ZX7 SCR , (ZX5-250B); Voltage 380V; Initial Current 29.6A; Range 25 ~ 250 A; Input 19.2 KVA
	Air Compressor	Voltage 380V; Power 3KW; Pressure 0.7MPa; Capacity 0.36M3/mm

Equipments for Mobile Workshop
Item	Description	Technical Data	Measurement	Weight	Qty.
1	Power Set (Generator)	Model: 40GF74-4	2030x650x1255(mm)	1030kg	1
		Rated Power: 40KW
		Rated Voltage: 400/230V
		Rated Frequency: 50Hz
		Rated Current: 72.2A
		Output: 3-phase, 4-line
		Diesel Engine: R4100ZD
		Generator Model: TZH-40
2	Welding Set	Model: ZX5-250B	406x530x840(mm)	160kg	1
		Voltage: 380V
		Phase: 3
		Frequency: 50/60Hz
		Initial Current: 29.6A
		Range: 25-250A
		Input: 19.2KVA
		Working Ambient: -10--+40oC
3	Air Compressor	Model: AW3608	1180x410x850(mm)	130kg	1
		Voltage: 380V
		Frequency: 50Hz
		Power: 3KW
		Pressure: 0.7MPa
		Capacity: 0.36M3/mm
4	Drilling Machine	Model: ZQJ4119AD	760x490x260(mm)	57kg	1
		Bore Range: 3--16mm
		Power: 700W
5	Vice	Size: 150mm
6	Grinding Machine	Model: MQ3225			1
		Size: 250mm
		Power: 700W
7	Oxygen Cylinder	Volume: 40L			1
8	Acetylene Cylinder				1
9	Gas Welding Set				1
10	Working Bench	Steel Panel	2300x550x780(mm)		1
11	Mobile cable	380V/220V;50m			1
12	Lifting Device	Roof Mounted, Retractable Cantilever, 2-Ton Chain Block			1
13	Folding chair	steel			2
14	Wall type fan				1

Tools for Mobile Workshop
Item	Name	Specification	Qty.
1	Bow Saw Frame		2
2	Hacksaw Blade	18 tine; 32 tine	Each 1
3	Manual Oil Gun		1
4	Oil Pot	300cc	1
5	Hand Electric Drill	220V 0.6-6mm	1
6	Pipe Expansion Ware		1 set
7	Electrical maintance kits	With multimeter	1 set
8	Screw Tap	Coarse thread M4;M5;M6;M8;M10;M12	6/set
9	Screw Tap	Fine Thread M8;M10;M12	3/set
10	Screw Tap Holder	180mm; 280mm	Each 1 set
11	Screw Die	Coarse Thread M4;M5;M6;M8;M10;M12	6/set
12	Screw Die	Fine Thread M8;M10;M12	3/set
13	Drill	1-10mm (at intervals of) 0.5mm	2 set
14	Drill	11-16mm	2 set
15	Drill	3.4; 4.2; 5.1; 6.8; 8.5; 10.2	Each 1 set
16	Steel Ruler	150mm, 300mm	Each 1
17	Vernier Caliper	150mm, 250mm	1
18	Screw Thread Gauge	The metric system; british system	Each 1

SINOTRUK Mobile Workshop Truck Product

Tags:workshop truck howo workshop truck sinotruk workshop truck 4x2 workshop truck

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
