JMC Knuckle Boom Truck Mounted Aerial Work Platform , 18 Meter Bucket Lift Truck

Product Categories

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Contact Now

Add to Cart

JMC Knuckle Boom 18 Meter High Altitude Operation Truck With Aerial Working Platform

14-16 M JMC Aerial Bucket Truck
General	Vehicle Brand	DRZ
	Chassis Brand	JMC
	Overall Dimension	7600 x 2000 x 3050 mm
	GVW / Kerb Weight	5,825 kg / 5,500 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	JMC engine
	Power	115 Ps (85 KW)
	Displacement	2771 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left or right hand drive

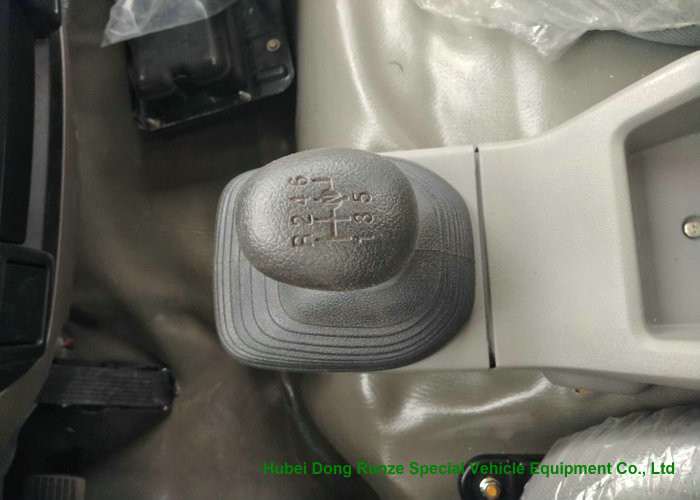

	Transmission	5-speed front, 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-16LT
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Working Cage	200 kg capacity, anti-slip floor
	Working Height	14-16 M
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
	Emergency stop switches at base and operator’s cage.
Optional	Hoist hook with cables can be equipped for the function of a crane.

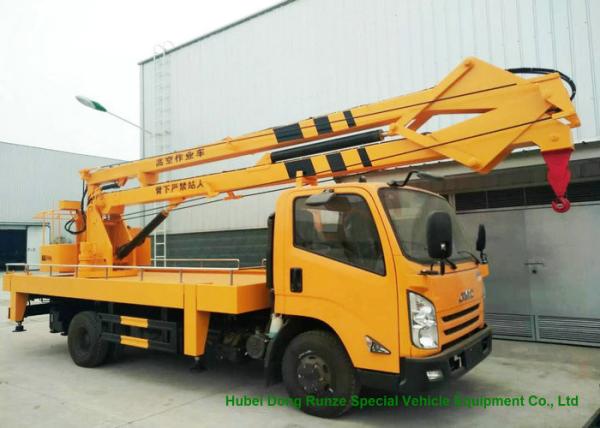

Truck Photo show:

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
