    Hydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude Trucks

    Ask Lasest Price
    Brand Name : Dong Run Ze
    Model Number : JAC
    Certification : C3
    Price : Negotiated at Weichat:King253725877
    Payment Terms : TT emial to <253725877@qq.com>
    Supply Ability : Ask us for Better Price <253725877@qq.com>
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Hydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude Trucks

    JAC crew cab 3 Knuckle arm 16-18 meter High-altitude Operation Truck aerial working platform​


    Vehicle parameters
    Overall dimension(mm)7670X1990X2995
    Compartment dimension(mm)XX
    The total mass(kg)6200
    Curb weight(Kg)5875
    Rated the quality of(kg)
    Chassis modelHFC1073R83K1C3
    Approach/departure angle (°)24/13
    Front/rear overhang (mm)1105/2065
    Chassis parameters
    Number of axle2
    Axle load2520/4475
    Number of spring7/4+5,8/4+5
    Number of tires6
    Front track(mm)1440
    Rear track(mm)1425
    Wheelbase(mm)3360
    Tire Specifications7.00R16 14PR,7.00-16 14PR
    Maximum speed(km/h)95
    Type of fuelDiesel

    This parameteris just for your reference, we can produce different specification of High-platform operation truck aerial platform, lifting platform truck, truck mounted boom lifts, cherry picker, electric platform truck, high-altitude, hydraulic rising platform truck, hydraulic aerial cage, tail-lift truck, high altitude operation truck, high altitude working truck, over head working truck according to your demands.


    Cabin

    JAC High up Truck

    JAC High Truck - JAC High-Altitude Operation Truck

    JAC High Platform Truck - JAC Aerial Working Truck

    Drive Model4X2 6X4 6X2 8X4 8X6
    Vehicle Main Dimensions(L x W x H)mm6422*1990*2995
    Wheel base (mm)3360
    Wheel track (front/rear) (mm)1105/1812
    Approach/Departure angle(°)19/15
    Weight in KGSCurb Weight5125
    GVW.5450
    Max. driving speed(km/h)95
    EngineBrandJAC
    ModelHFC4DA1-2B2
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)1220
    Displacement2.771L
    Max. Output Power88KW
    Emission standardEuro Ⅲ
    Gearbox5 forwards& 1 reverse
    ClutchReinforced diaphragm clutch, diameter 430mm
    Tire8.25R16 All steel radial tire, 1pc including 1 spare tire
    BrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
    Steering Gearpower steering, hydraulic steering with power assistance
    Equipment
    Working Platform360°turning(left or right), H-shape legs 360°
    Dimensioin1100X570X1000mm
    Extendable boom sectioin2002/3/4
    Max Lifting Weight990KG 1000KG,1500KG,2000KG
    Max. Working Radius10m,8m,12m,14m,13m,15m,16m,17m,18m
    Boom TypeStraight/Foldable
    Lifting Max. Height8m,10m,12m,14m,16m,18m,20m,

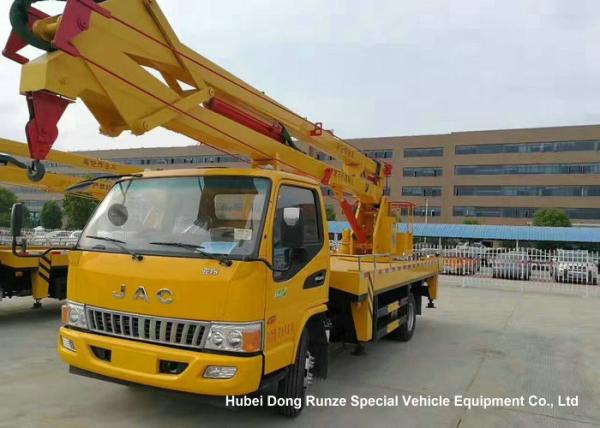

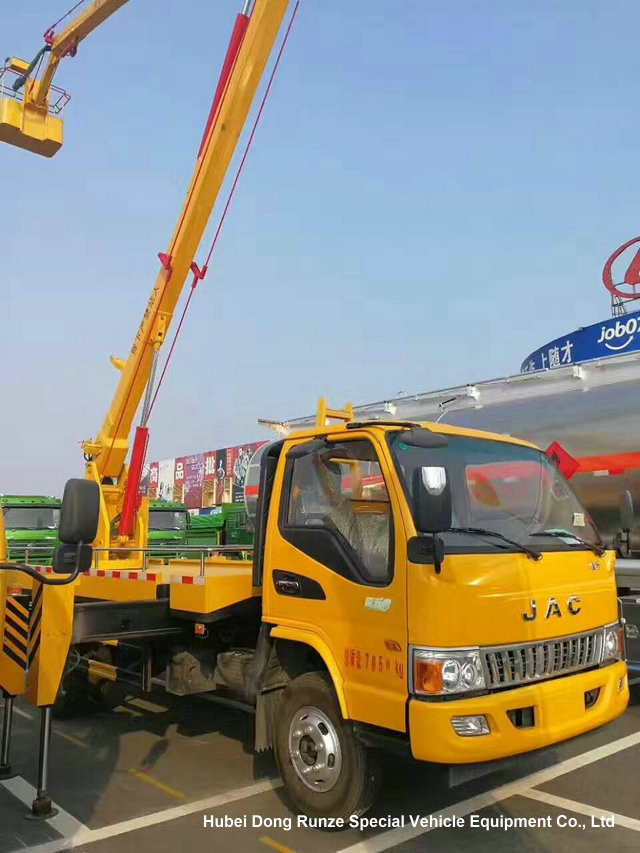

    Truck Photo show:

    Hydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude TrucksHydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude TrucksHydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude TrucksHydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude TrucksHydraulic Rising Truck Mounted Aerial Platform , 16-18 Meter High Altitude Trucks

    Shipment option


    CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
