JMC 4x2 Double Cabin Aerial Working Truck Mounted Aerial Work Platform 16m

Main feature

1, The truck mainly used for high operation, for example electricity, telecommunications, street lighting, cable TV, garden, advertising, photography and so on.
2, The mainly valve and hydraulic cylinder all China famous brand or export brand.
3, Could operate on land or on the working bucket.

JMC 14-16m 4x2 double cabin aerial working truck mounted aerial work platform

we manufacture kinds of aerial working platform truck, any inquiry please contact us.

Main specification
Product model and name	DRZ5050JGKJ4 overhead working truck
Gross weight(Kg)	5425		Drive type		4X2,LHD
Curb weight(Kg)	5100		Overall dimension(mm)		6850X1950X3100
Approach/departure angle(°)	27/14		Cab seats		2+3
Axle No.	2		Front/rear hang(mm)		1015/1975
Axle load(Kg)	1735/3690		Wheelbase(mm)		3360
Max speed(Km/h)	100
Chassis specification
Chassis model	JX1060TSG24		Manufacturer		JMC Motor Co., Ltd
Brand name	JMC		Dimension(mm)		5850×1880×2020
Tyre specification	7.00R16LT		Tire No.		6+1(One spare tire)
Steel spring number	8/6+5		Front track base(mm)		1385
Fuel type	Diesel		Rear track base(mm)		1425
Emission standard	Euro IV		Transmission		5 forward gear
Cab	Double row,5 person allowed, optional to fix A/C and power steering
Engine model	Engine manufacturer			Displacement(ml)		Power(Kw)
JX493ZLQ4	JMC Motor Engine Co., Ltd			2771		80 (120HP)
Upper part
Working height		14-16 meters		Control		Electronic
Maximum operating range		7.5m		maximum lifting height		14-16m
Rotation speed		0-2r / min		Rotation angle:		360 degrees

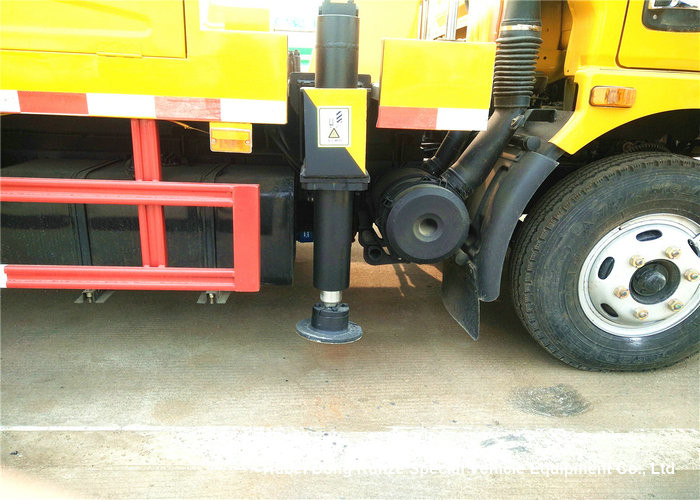

Hydraulic landing legs		4pics		Working bucket max loading		200kgs
Choose to fix lift hook, loading weight 1000kgs~1500kgs

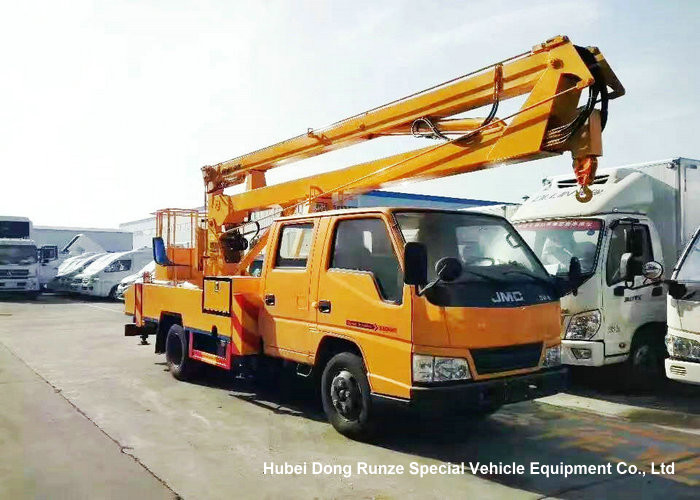

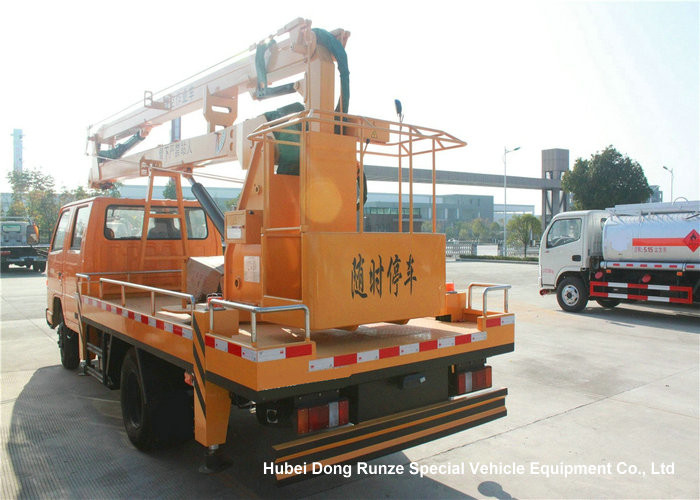

Truck Photo show:

JMC 14-16 altitude operation truck

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
