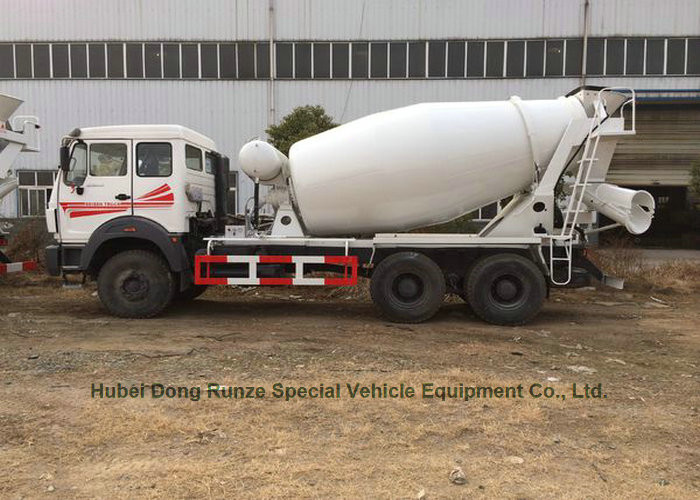

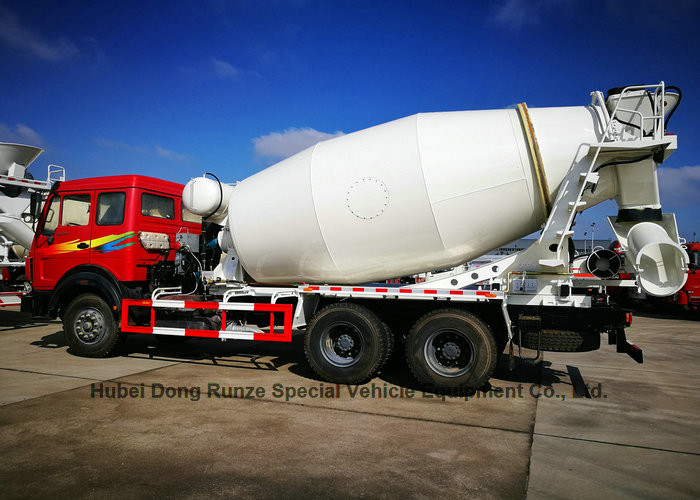

Beiben 2534 RHD /LHD Concrete Mixer Truck EURO 3/5 Heavy Duty
10-12m3
8~12m3 Transit Mixers concrete mixer truck Chassis parameters
Chassis model ND1254B38J Chassis brand North-Benz
Overall dimensions 8065x2495x3130mm Wheel base 3800+1450 mm
Front/rear wheel track 1995/1800/1800mm Front/rear suspension
1410/1405 mm
Approach/departure angle 26/35° Maximum speed 85km/h
Chassis Manufacturer BEIBEN TRUCK
Cab Configuration NG80B a row and a half(with sleeping
berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model WP10.340E32
Emission Euro 3
Type 6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling,
direct injection,exhaust valve brake,diesel engine
Rated power 340hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1250N.m
Bore x stroke 126x155mm
Manufacturer Weichai Power Co.,Ltd
Tire Size 12.00R20 steel wire tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 300L aluminum alloy
Front axle 7.5 tons
Rear axle 13.0 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Gearbox 9T1680,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please
take the actual product as the standard
Concrete Mixer Truck structure parameters
Loading capacity 12m3 Tank material 6mm alloy steel
Tank front head 8mm alloy steel Reducer Germany ZF7300
Hydraulic pump Germany REXROTH Hydraulic motor Germany REXROTH
Radiator KAIPENG Color and Logo Optional
Standard configuration chassis,sub frame,mixer tank,reducer,
hydraulic pump,hydraulic motor, radiator,water tank,cleaning
hose,feed port, discharge port,climbing ladder,air pressure water
supply device.
Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany
REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm
alloy steel wear resistant material,front tank head 8mm alloy steel
wear resistant material)
Selective configuration Emergency high pressure oil hose(4
pieces),12m emergency oil hose(Italy),water cannon,large tool
box,electric water supplying system.
Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America
EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America
SAUER hydraulic motor.
Overall dimensions 9300X2500X3900mm Curb weight 13650kg
Loading capacity 12m3
Customization, Cost Control Built How You Want it, at a Price You
Can Afford. for sale call:+86-152 -7135-7675
4x2, 4x4, 6x4, 6x6, 8x4 Concrete Mixer Truck for your selection,
LHD and RHD cabin are both available.
| Parts | Technical Parameter | Remark |
| Overall | Chassis Model | ND5250GJBZ15 | |
| Curb Weight | 13000kg | |
| Rated Loading Weight | 12000kg | |
| Overall Size (L*W*H) | 9950×2500×4000mm | |
| Engine | Type of Fuel | Diesel | |
| Brand/Model | WP/ WP10.336N | |
| Horse Power | 336HP | |
| Chassis | Brand | BeiBen | |
| Wheelbase | 4100+1450mm | |
| Cabin | Left-hand driving, Air conditioner, Flat headed |
| Transmission | FAST 9-speed |
| Brake System | Pneumatic brake |
| Tyre | Specification | 12.00R20 | |
| Number of Tyre | 10+1 spare tyre | |
| Durm | Drum Capacity | 12m3 | |
| Material | Q345-A manganese steel | WuHan Iron and Steel (Group) Corp. |
| Thickness | 5mm | |
| Hydraulic System | Motor | ARK(Italy),ZF(Germany),Eaton(USA) |
| Pump | ARK(Italy),ZF(Germany),Eaton(USA) |
| Reducer | TOP(Italy),Bonfiglioli(Italy) |
| Note | Some components are optional according to your requirements. |
concrete mixer truck
Beiben 2535 Mixer trucks Beiben Concrete Mixer Truck Beiben Cement
Mixer Suppliers 2529, 2534, 2539, 2542, 2634, 2638, 2642, Beiben,
Beiben-Trucks, Beiben-Trucks
Emission Standards EURO3
| 6*4 | ND5257GJBZ | 3800+1450 | WP10.340E32 | 10m3 |
| ND5256GJBZ | 4100+1450 | 12m3 |
- Emission Standards EURO4
| 6*4 | ND5250GJBZ15 | 3800+1450 | WP10.336E40 | 10m3 |
| 4100+1450 | 12m3 |
| 8*4 | ND5310GJBZ08 | 1950+3100+1450 | WP10.336E40 | 14m3 |
| WP10.375E40 |
| 8*4 | ND5310GJBZ09 | 1950+3400+1450 | WP10.336E40 | 16m3 |
WP10.375E40
|
mainly by the undercarriage, the mixing tube, transmission (drive),
hydraulic drive system, water system, installed (into) materials
and material unloading system, discharge chute, platform, control
systems and protective equipment.
Cement mixer truck is used to transport concrete. Such devices are
on the truck cylindrical mixing tube to carry the concrete after
mixing. During transport always kept stirring drum rotation to
ensure that concrete does not carry solidification. After the
delivery of finished concrete, usually rinsed with water inside the
mixing tube to prevent hardening of concrete space, so that the
volume of the mixing tube is less and less.
Shipment option
CBU terms should be chosen for such tanker shipment. By bulk ship,
or RORO car carrier ship. some by Flat /Frame container
applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT
INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
