Tri Axle Gooseneck Flatbed Trailer , Lowboy Semi Trailer 12 Wheeler 60 Ton

Tri- Axle Gooseneck Low Loader Lowboy Lowbed Trailer 12 Wheeler 60Tons

SPECIFICATION

Trailer Model	3 Axle Low bed Semi Trailer
Dimension(Lx W x H)(mm)	13000 x 3000 x 1600
Curb Weight(KG)	12000
Loading Weight( KG)	60000
Total Weight(KG)	70000
Departure Angle	16
Axle Brand	13TON Axle
Axle Number	3
Suspension system	Mechanical suspension
Steel Spring	10/10/10
Frame	The height of the beam is 500mm, upper plate is 18mm, down plate is 20mm, middle plate is 10mm.
Platform plate	4mm Diamond Plate
Tire Type and quantity	12R22.5 12units
Traction Pin	50mm or 90mm
Spare Wheel Bracket	2 pieces
Tool Box	1 Unit
Landing Leg	28T load landing leg
Brake system	Dual Line braking system ,with ABS.
Brake air chamber	6 big air chambers
Electrical system	24V,7 Pole plug
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	None
Painting	Color by customer’s requirement
Packing	Polish with wax before shipping
Delivery way	Transfer to China port, and carry by bulk ship, the freight cost depends on the volume.

Tri- Axle 12 Wheeler 50 -70Tons Gooseneck Low Loader Lowboy Lowbed Trailer

WETGHT
Tare Weight	11700kg	12000kg
Loading Capacity	50T	70T
Axle Weight Load	13T
SPECIFICATION
Axle	2×Fuwa ( or BPW)	3×Fuwa ( or BPW)
Suspension	Common mechanical
King Pin	2" or 3.5" traction pin
Dimensions (LxWxH)	13000×2500×1550mm
Wheel Rim	9.0-22.5
steel Spring	10 pieces per axle
Landing Gear	28T JOST
Painting	1 coat of anticorrosive prime, twice coats of final paint
Ladder	60T Mechanical
Floor	3 or 4 or 5 mm
Tire specification	12R22.5 ( or 11.00R22.5)
Number of Tire	8	12
Spare Tire Carriers	2	2
FRAM
Main beam	Q345 Steel Upper:18mm;Down :20mm;Middle: 12mm
Cross beam	14# Channel steel
Side beam	25# Channel steel
BRAK
Brake Chamber	4 big chamber	6 big chamber
Brake system	Dual Line Brake system (ABS optional)

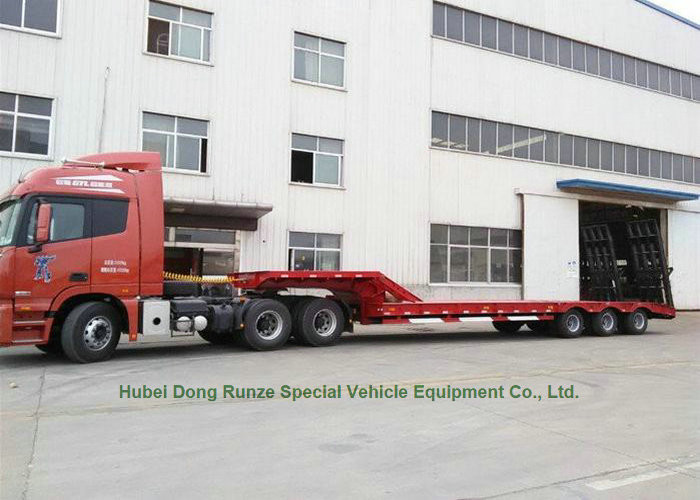

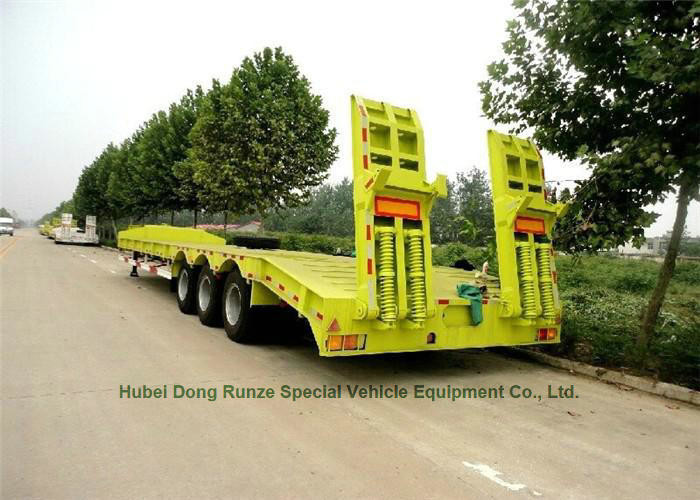

Trailer Photo show:

Tri Axle Gooseneck Flatbed Trailer , Lowboy Semi Trailer 12 Wheeler 60 Ton

3 axles end tipping semi trailer/rear dump semitrailer for truck 50 - 60 Ton

Delivery Shipment option

Normally, two standard flatbed container trailer can be disassembled and loaded into one 40ft ISO container. Local assembly is required for this type of shipment and the assembly work is very easy. Bulk transportation is also available, 3 flatbeds make up a bundle. The total freight cost will be saved by almost 30%.

applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
Tri Axle Gooseneck Flatbed Trailer , Lowboy Semi Trailer 12 Wheeler 60 Ton
2 axles 3 Axles Hydraulic Rear Dump Semi Trailer 30 ton 60 ton U shape
Warranty period and after sale service

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish

Weight
Tare Weight	8000kg--14000kg
Loading Capacity	30T-90T low bed semi trailer
Axle Weight Load	3 axles/ 2axles, 13T (16T) FUWA /Huajing Brand
Specification
Axle number	2 - 4
Axle Brand	Fuwa/BPW/Optional
Suspension	Common mechanical
King Pin	2" or 3.5" traction pin
Dimensions (LxWxH)	13000-18000×2500-3200×800mm
Support legs	28T
Wheel Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Wheelbase	7180/6680/6260+1310+1310mm
Steel Spring	8/10/13 pieces per axle
Ladder	Mechanical ladder Or Air Ladder
Landing Gear	Manual operating, Heavy duty landing gear (Brand Optional upon chioce)
Floor	3 - 5 Diamond plate
Accessories	2 Sets standard tool box
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting	1coat of anticorrosive prime, twice coats of final paint
Tire
Tire spe.	12R22.5 Vacunnm tire /11.00R20
Number of Tire	8 or 12 or 16 pieces
Spare Tire Carriers	2 pieces
Frame: (specs. and materials)
Main beam	The height of the beam is500-550mm; Upper plate:18mm;Down plate is 20mm; Middle plate is 12mm.
Cross beam	14#Channel steel
Side beam	25 # channel or H steel
Brake
Brake brand	Optional upon choice
Brake Chamber	Six big chamber( Brand Optional upon chioce )
Brake system	Dual Line Brake system (ABS Optional upon chioce)
