Trailer description
The bulk cement trailer is normlly used in powder cargo
transportation such as cement, mineral powder, ashes, flour, and
other powder with diameter less than 0.1mm. The powder is
discharged by compressed air generated by the air compressor. The
tanker shell is specially desgined to bear the large air pressure.
The tank design helps to shorten the discharge time and reduce the
residual during unloading. As other types of the tanker trailer,
there are various options for tanker size, in which 36CMB is the
most preferred, the thickness of tanker is 6mm. The air compressor,
powered by PTO or separated engine, adopts Honda or other brands
the customer named.

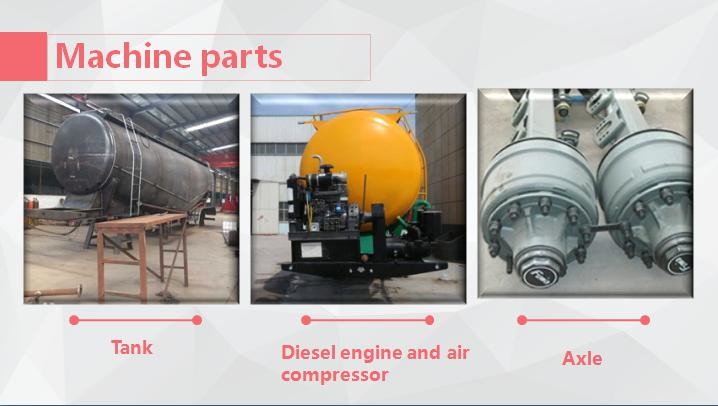

Machine Parts
Name: Engine & Air compressor
Brand: Weichai & Bohai
Original: China
Adopted Chinese famous Weichai engine and Bohai compressor to
gurantee good quality and high working performnce.
Name: Tank body
Brand: Dong Run ze trailer
Original: China
Tank body 5mm; End plate 6mm
Advanced welding machines to ensure tank body's good quality
Name: Axles
Brand: BPW
Original: Germany
Adopted Germany BPW axles, ensure working security
Name: Tires
Brand: Double
Original: China
Adopted Chinese well-known Double tires to meet different requests
of road conditions
| Dimension |
| Tare Weight | 11000kg | Payload | 50000kg |
| Overall Length | 13000mm | Overall Width | 2500mm | Overall Height | 4000mm |
| Specification |
| Tank Body | Q235A/6mm Steel Sheet Shape: V Type |
| End Plate | Q235A/6mm Ball Shape |
| Axle | Number | 4 | Brand | Optional Upon Choice | Capacity | 13T |
| Suspension | Mechanical Suspension Or Air Suspension |
| Leaf Spring | Leaf Spring Or Air Bag |
| Manhole Cover | 500mm Manhole Cover 2 Sets |
| Tire | 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire Optional |
| Wheel Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 Steel Wheel Rim Optional Upon
Choice |
| Discharge Valve | 4"Disc Valve |
| Discharge Pipe | 4"Seamless Steel Tube |
| Kingpin | 2"/3.5" Bolt-In King Pin |
| Landing Gear | Jost Brand Two-Speed,Manual Operation,Heavy Duty Landing Gear |
| Engine | Diesel Engine Or Electrical Motor |
| Air Compressor | 37Kw,0.2Mpa.1000r/Min |
| Compatment | Single |
| Braking System | Wabco Re6 Relay Valve;T30/30 Spring Brake Chamber;40L Air Tanks. |
| Painting | Complete Chassis Sand Blasting To Clean Rust,1 Coat Of
Anti-Corrosive Prime,2 Coats Of Final Paint |
| Accessories | 1 Standard Tool Box |
| Air-Charging System | 2"Main Hole,2"Check Valve,1.5"Safe Valve,0.4Mpa Guage |
| Quadratic Blow | 1"Diameter Check Valve |
| Outlet Discharge Pipe | 4"Rubber Hose 6m |
Bulk Cement Trailer Features
Various loading capacity
Tank body made from high tension steel plate
Good quality air compressor
Main components purchased from famous brand
Shipment option
The same as all other type of tanker trailer, it's difficult to
load bulk cement trailer inside a 40ft container. CBU is the only
way of shipment, the freight cost will occupy a large amount in the
total cost of the purchasing of bulk cement trailer.
Loading and Packing
Warranty period and after sale service
FAQ
1.Q: Are You a Manufacturer Or Trading Company?
A: We Are Manufacturer.
You Are Welcomed To Visit Our Factory.
2.Q: What Kind Of Payment Do You Accept?
A: We Accept T/T And L/C At Most.
If You Want To Use Others Payment, Contact Me For More Info.
3.Q: What's Your Delivery Time?
A: It Depends On The Products.
| Products | Delivery Time |
| Low Bed Trailer, Container Trailer, Skeleton Trailer, Side Wall
Trailer, | 10-15 Days |
| Fuel Tanker Trailer, Bulk Cement Trailer | 30 Days |
| Special Truck, Like Detachable Gooseneck Trailer, Hydraulic Modular
Trailer | 35 Working Days |
4.Q: What's Warranty Time?
A: Main Frame, One Year; Vulnerable Parts,Three Month; Others
Parts, Half Year;
5.Q: What's Your After-Sale Service?
A: We Provide Technical Support For Our Products.
Besides, We Also Provide You Spare Parts As Long As You Need.
