    Commercial Flatbed Trailers For Container Transport With 12 Twist Locks And 12 Tyres 50T

    Ask Lasest Price
    Brand Name : Dong Run Ze
    Model Number : OEM
    Certification : C3
    Price : Negotiated at Weichat:King253725877
    Payment Terms : TT emial to <253725877@qq.com>
    Supply Ability : Ask us for Better Price <253725877@qq.com>
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Commercial Flatbed Trailers For Container Transport With 12 Twist Locks And 12 Tyres 50T

    3 Axle Flatbed Container Transport Semi Trailer With 12 Twist Locks And 12 Tyres 50T

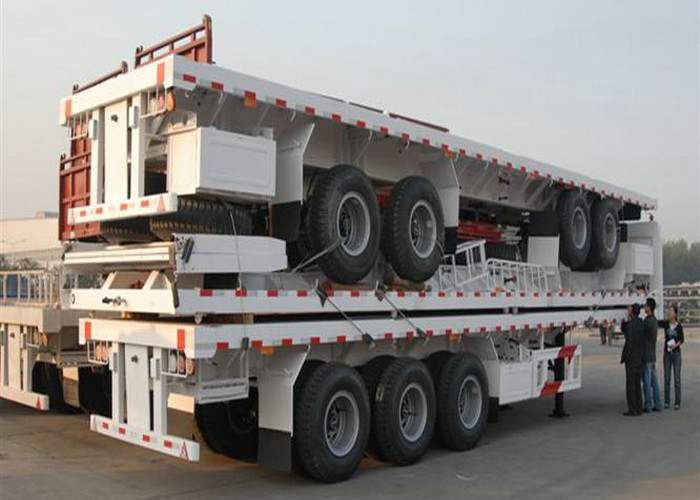

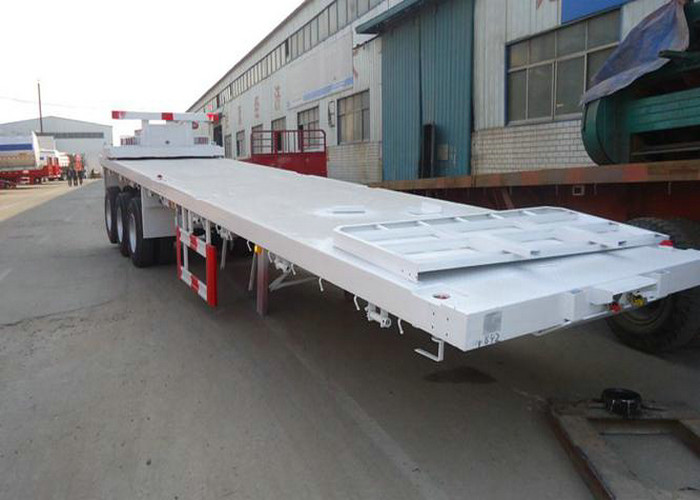

    Trailer Photo show:
    3 Axle Flatbed Container 3 Axle Flatbed Container 3 Axle Flatbed Container 3 Axle Flatbed Container 3 Axle Flatbed Container Transport Semi Trailer

    Weight:Tare Weight7500kg
    Loading Capacity70T flat bed semi trailer
    Axle Weight Load13T capacity per axle
    Specification:Axle number3
    Axle BrandFuwa/BPW/Optional
    SuspensionMechanical Steel Spring Suspension
    King PinJOST brand 3.5inch bolts type
    Dimensions (LxWxH)

    12500×2500×1500mm

    (as your need)

    Support legs28T
    Wheel Rim9.00-22.5 Or 8.0-20/8.5-20 Vacuum tire
    Wheelbase7180/6680/6260+1310+1310mm
    Steel Spring10-13 pieces per axle
    Twist lock12 sets twist lock for 1*20ft,2*20ft,1*40ft container
    Landing Gear

    Manual operating, Heavy duty landing gear

    (Brand Optional upon choice)

    Floor3-5 Diamond steel plate
    Accessories1 Set standard tool box
    Light

    Tail lamp with turn signal, brake light & reflector,

    side lamp etc.

    Painting1coat of anticorrosive prime, twice coats of final paint
    Tire:Tire spe.12R22.5 Vacuum tire /11.00R20
    Number of Tire12 pieces
    Spare Tire Carriers2 pieces

    Frame:

    (specs. and materials)

    		Main beam

    Q345 Steel

    The height of the beam is500mm;

    Upper plate:14mm;Down plate is 16mm;

    Middle plate is 8mm.

    Cross beam10# channel steel
    Side beam16# channel steel
    BrakeBrake Chamber

    WABCO RE 6 relay valve; T30/30+T30 Spring brake

    chamber(TKL brand); One piece of 45L air tanks

    Brake systemDual Line Brake system (ABS Optional upon choice)

    2

    Tare WeightAbout 7.5T
    Dimension12500mm*2490mm*1550mm
    Loading Capacity (T)40 T
    Axle3 axles/ 2axles, 13 T FUWA /Huajing Brand
    Rim9.00-22.5 (special for export market)
    Tire12.R22.5 13pieces
    SuspensionAir suspension ( Mechanical America Type optional)
    Spring leaf90(W)mm*13(Thick)mm*10 Layer
    King pinJOST brand 3.5inch bolts type
    Support legChina brand 28Tons (Double speed)
    Main beam

    Height: 500mm, upper plate is 14mm, middle plate is 8mm,

    Down plate is 16mm; Material is Q345B Steel

    Side beamQ235 16# channel steel
    Platform3mm diamond platform
    Side wallHeight is 800mm, you can choose freely.
    Brake chamberWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
    ABSWithout (optiona)
    Twist LocksEight pieces (Lifting type)
    ValveWABCO valve
    LightLED light
    Voltage24V
    Receptacle7 ways (7 wire harness)
    Tool box1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, twice coats of final paint
    Shipping TermsBy bulk cargo carrier, RORO or 40HQ container.

    Flatbed Container Trailer Features


    • Main frame made from high tension steel

    • International standard dimension and fitting

    • Suitable for container transporting and common cargo

    • Sidewall, headboard, side pillars as options.

    Shipment option

    Normally, two standard flatbed container trailer can be disassembled and loaded into one 40ft ISO container. Local assembly is required for this type of shipment and the assembly work is very easy. Bulk transportation is also available, 3 flatbeds make up a bundle. The total freight cost will be saved by almost 30%.


    applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
