Oil Tank Full Trailer (Customizing 2-3-4 Axles Dolly Tanker 10CBM
-30CBM)

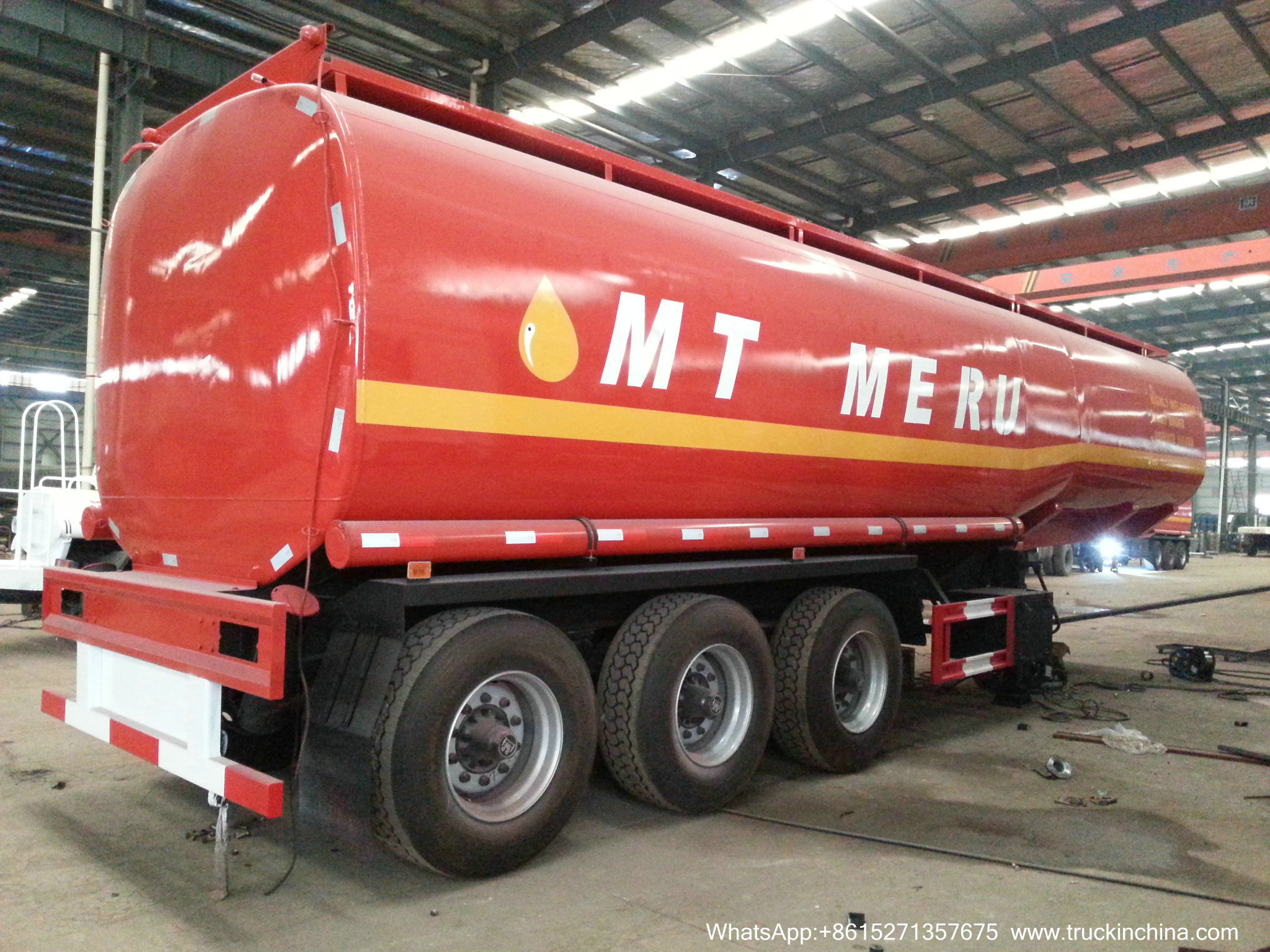

Factory direct supply tanker semi trailer is used to transport
fuel, the capacity is from 30CBM to 60 CBM, the compartments are
1~6 compartments. Including steel tanker, stainless steel tanker
trailer and aluminum tanker. The tank body is Q235/5mm steel, End
plate Q235A/6mm steel sheet.
Oil Tank Full Trailer ( Customizing 3-4 Axles Dolly Tanker 20CBM
-30CBM )
Full Tank Trailer With Draw Bar Dolly 2axles For Fuel
,Water,Oil,Diesel Fuel Trailer Pup Tanker
Customization, Cost and Control Built How You Want it, at a Price
You Can Afford.
| 3-AXLE OIL FULL TRAILER |
| Capacity: 20 CBM |
| Frame: Upper plate: 14mm, lower plate: 14mm,middle: 8mm. Side main
beam: 6mm, cross beam: 6mm, reinforced triangle beam:4mm, Support
beam: 4mm |
| Dimension(L×W ×H): 8000*2700*2800mm |
| Tank size: 20 CBM |
| Thickness: Floor 6mm Diamond checked, Side 5mm |
| Suspension: Mechanical suspension |
| Connector: With connecting triangle frame with thickness of 8mm |
| Axle: 3x13Ton BPW axles. |
| Tire: 12.00 x R20 x 18PR, Triangle brand TR668 ,13pcs |
3-Axle Stake Semi Trailer with Dolly for Cargo Transportation 12
Wheels Dolly Trailer
Tare Weight |
4500kg |
Payload |
15000----35000 kg |
Total Weight |
18000 ----39900kg |
Overall Length |
Refer drawing |
Overall Width |
Refer drawing mm (maximum 2) |
Overall Height |
Refer drawing |
Wheel track |
Refer drawing mm |
Wheel base |
Refer drawing mm |
STANDARD SPECIFICATION |
Main Frame |
Heavy duty and extra durability designed; Opting for high tensile
steel Q345B,welded by automatic Submerged-Arc processes 505mm
Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom
Flange 16mm,width 140mm |
Axle |
FUWA/ BPW / L1 ,Dongfeng DANA axles. |
Suspension |
3-axle spring Suspension |
Landing Gear |
No |
Wheel Rim |
6---12units |
Tyre |
6 --12 units of size 10.00-20 ; 11.00-20;11.00R20;11.00R22.5 |
Pneumatic Braking System |
30/30 spring brake chamber (S Cam); eliable local brand 40L air
tank ; reliable local brand standard coppery air-connector. |
Electrical System |
24V 7-pin socket; reliable local brand standard red rear lights,
orange turning lights, red rear reflectors, 3 orange side lights
and 3 orange side reflectors each side 6, standard Cable. |
Tank |
5000---25,000 litres capacity |
|
Shell baffles 6 mm carbon steel |
Tank fittings |
Manhole covers top filler
Bottom coupling DN80 discharge system |
Painting |
as client requirement |

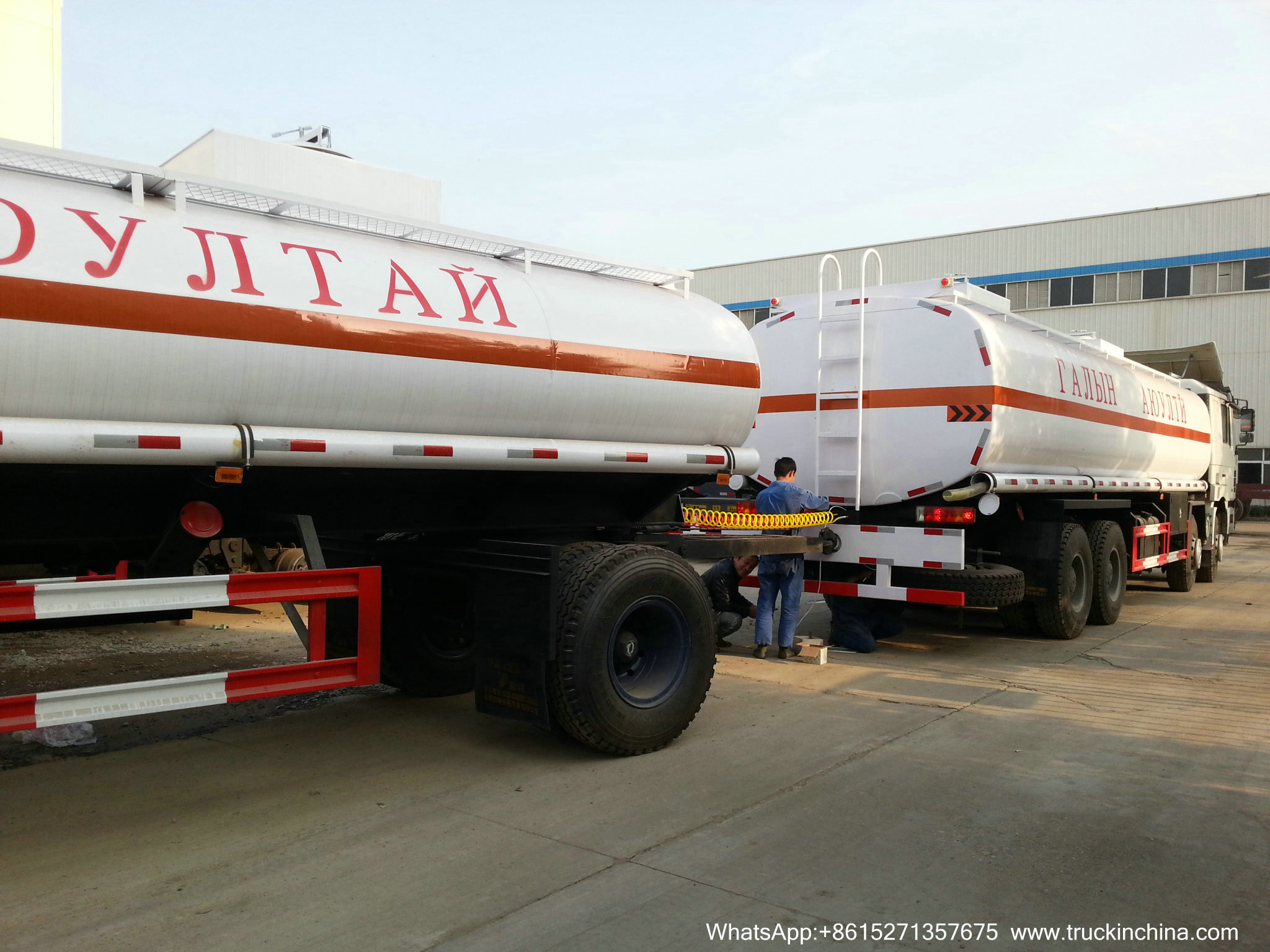

DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL
trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar
Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
| Axle No. | Axle Location | Tire No. | Length | Rating Capacity |
| 1 | Rear | 4 | 1-5 CBM | 5Tons |
| 2 | 1+1 | 8 | 6-15 CBM | 16~18Tons |
| 3 | 1+2 | 12 | 15-50CBM | 18~50Tons |
| 4 | 2+2 | 16 | 50-70CBM | 50-80Tons |
| Suspension | America type mechanical Suspension |
| Wheel | 11.00 R20 |
| Turntable | Diameter is 1100mm |
| Traction hook | DN50 |
| Traction bar | Length is 1.4m |
| Dimensions(LxWxH) | 7500-18000×2500×1500mm |
| Steel Spring | 10/10 pieces per axles |
| Tire: | |
| The material of
Main beam | The height of the beam is420mm,upper plate is 12mm*140,down plate
is 12*140mm,middle plate is 6mm(strictly).made of Q345 |
| Platform plate | 3mm Diamond Plate |
| Brake: | WABCO VALVE |
| Brake | Kemi Brand of China |
| Brake Chamber | TWO double and two single chamber( TKL brand ) |
| ABS system | with |
| Electrical: | |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Light color: | (LED light) |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
| Miscellaneous: | |
| Painting | Can be choose freely |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
| Tools box | One pieces or According to the buyer(1m length) |
| Water tank | The size can be choose freely. |
Producing Process
Trailer description
1
| Main Dimensions |
| Tank Body |
| Shape | Optional(Round or Suare) |
| Dimension | 12000mm*2490mm*3990mm(Exact size depend on the final design) |
| Tare Weight | About 8000Kg-12800Kg |
| Total Volume(m3) | 25m3-60m3 |
| Tanker Body Material | 5mm or 6mm Stailess steel |
| End Plate | 5mm or 6mm/Q235 Stailess steel |
| Manhole Cover | Stailess steel API manhole cover ,500mm |
| Bottom Volume | Stailess steel API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4” rubber hose,2 pcs,6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Welding design or special design I beam ,connected by bolts and
nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOSTD200T or China brand 28T |
| King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension(Germany or American type)/air suspension |
| Leaf spring | 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without |
| Pneumatic Braking System | WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air
tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| ABS | Optional |
| Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive
prime,2 coats of final paint |
| Accessories | One standard tool lox |
| Shipping Terms | By bulk cargo ship, RORO or 40HQ container |
2

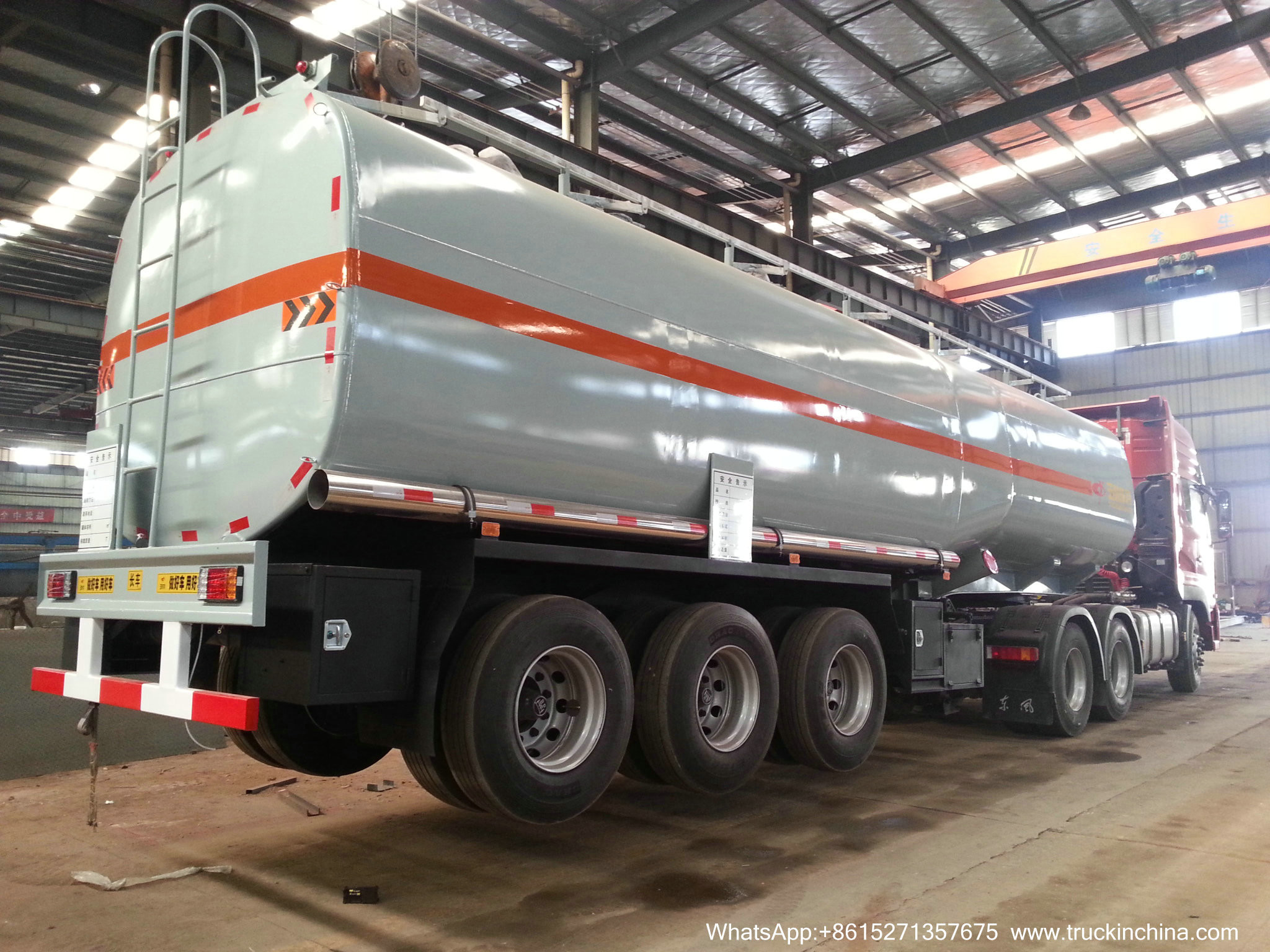

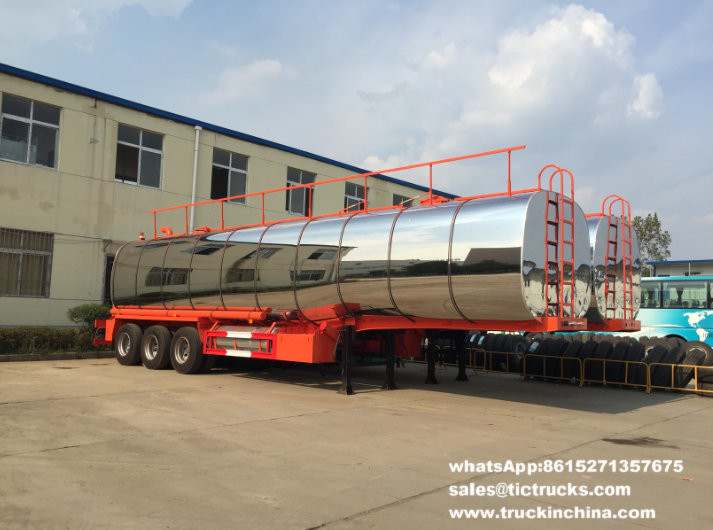

| 30,000L-45,000L 3-axle Tank Semi-trailer |
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical
liquid |
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) |
| Model | DRZ9350GRY |
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 |
| Capacity(kgs): | 30,000L-65,000L |
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle | Original BPW-12T/ FUWA-13T |
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of
leafs spring/ Airbag suspension |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake
chamber; two units T30 spring brake chamber; two units reliable
local brand 45L air tank; two units reliable local brand standard
coppery air-connector. |
| Manhole: | Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with
breather valve; |
| Discharge Valve | Aluminum alloy discharge valve with cover |
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch |
| Discharge Hose | 2 units 3”×6M factory PVC hose with quick coupling on both ends |
| Vapor Recovery & Overfill system | Optional |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry
powder type fire extinguisher inside |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting |
| We can build the trailers according to customer’s design and
requirement |
2
Loading and Packing
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value
payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value
payoff before delivery after production finish
