Truck Mounted 16m Aerial Work Platforms woith Water tanker High Performance Whtsp:+8615271357675
JAPAN TECHNOLOGY 4*2 16M 18M AERIAL WORK TRUCK FOR SALE
Truck Photo show:

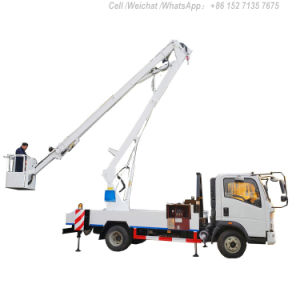

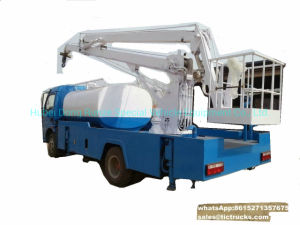

Truck Mounted Aerial Platform 16m Manlift Mounted Water Tank 3000L
Work lift height: 12m,14m,16m boom crane loading capacity1000kg water Tank Volume: 3000L Chassis parameter: LHD / RHD Right hand drive Cab: flat Single row Wheelbase (mm) : 3800 Gross Weight : 9000kg Curb Weight: 5060kg Overall dimension (L*M *W) (mm) : 7500*2470*3050 Engine Model: B140 Engine Make: Cummins Displacement / hp: 3900cc/ 103 kw Emission Standard: Euro 3 RADIAL TYRES 7.50R16LT

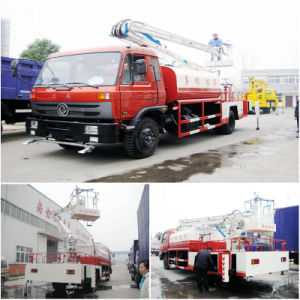

Aerial platform truck 16m with water tank and water pump Customising Aerial Platform 16m Water Tank 3000L Truck
water tanker is superior high quality carbon steel plate, provided with Yifeng special-purpose sprinkler water pump, vertical imbibing length≥5m, spray width≥14m, hoisting heights ≥25m.
Front washing and rear sprinkling, with spurting aside, with working platform after the tank installed high pressure cannon(the spurting water can be adjusted to concurrent shape, heavy rain shape, moderate rain, fine rain shape, and the cannon can rotate 360 degree, hoisting≥25m)
Installed with self-flow and fire hydrant valve. Equip with self-priming pump, which could suck the pool water into the tanker, and also can suck water from fire hydrant in the street directly.
The water trucks also have the function of pesticide spraying. The water tankers could be processed through antiseptic treatment according to customer's requirements. They're also applicable for water carrier and emergent firefighting.
Please notify in advance if you have special requirements about water trucks (eg: stainless steel plate material). We can offer various spare parts, pipes and sprayer nozzles.
Chassis Description
1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C; 2. Dongfeng 4 cylinder 100-130HP diesel engine, 6 speed gear box, 7.00-16 tire; 3. Power steering, air brake.
Modified Description
1. Tank effective volume: 2000L-3000L, made by 4-6mm carbon steel plate or corrosion resistant plate; 2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle); 3. Pump parameters:model:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating; Pump parameters:model: 80QZ60/90N(S),flow:1000L/min,lift:50m,input shaft speed:1180r/min,shaft power:22.5KW,vertical suction:6.5m,direction of input shaft:left-right rotating 4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant.
Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.
Max Operation Height: 16m , 360° hydraulic Rotation, 3section folding arm, Single hydraulic lifting cylinder, bidirection balance valve, Electronical Control System lift arm, 1000kg telescoping hook, 4pcs of hydrocylinder adjustable manual landing leg with bothway hydraulic lock.
Remarks
double row cab,side and rear protective material is Q235, connecting by nut and welding,rear bottom part clearance is 450mm,section size is 30×200(mm)
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
